1L Serisi Eflatun Yay- Ekstra Yumuşak Kalıp Yayı

XLL%	Uzun ömür için kapanma oranı	Max%	Maksimum çalışma mesafesi
S1	Stroke mm	F1	Yük (N)
S2	Stroke mm	F2	Yük (N)

YÜK: Yayın 1mm kapanması için gerekli olan kuvvet.
(1N = 0,102 Kg, 1Kg = 9,81 N)

TOLERANS

Serbest Boy	Minumum ± mm 0,75 veya ± 1% içindedir.
Dış Çap	Yayların dış çapı her zaman katalogta belirtilen gövde çapondan daha küçüktür.
İç Çap	Yayların iç çapı her zaman katalogta belirteilen kılavuz pimi çapında daha büyüktür.

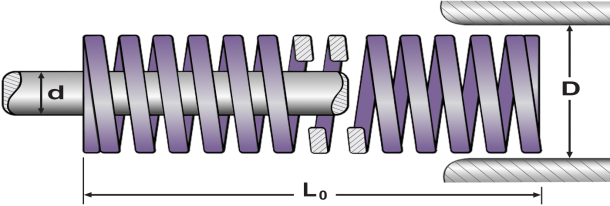

D A to Z Z to A Select All 10 12.5 16 20 25 32 40 50 63	d A to Z Z to A Select All 5 6.3 8 10 12.5 16 20 25 38	Lo A to Z Z to A Select All 25 32 38 44 51 64 76 89 102 115 127 139 152 178 203 254 305	R A to Z Z to A Select All 0.6 1.2 1.5 2.5 3.2 3.3 3.6 3.9 4 4.1 4.5 4.7 4.8 5 5.1 5.2 5.5 5.8 6.1 6.2 6.5 6.7 6.9 7 7.5 7.8 8 8.1 8.5 8.6 8.7 8.9 9.7 9.8 10.2 10.3 10.5 10.6 10.8 11.4 12.1 12.2 12.3 12.6 13.6 13.8 13.9 14.4 15.3 15.5 15.8 16 16.3 16.4 17.8 18.1 19.2 19.4 19.5 20.2 20.7 21 21.3 21.6 24 24.2 24.5 24.7 25.4 27.4 27.8 28.1 28.6 32.1 32.3 32.8 33.1 33.2 33.3 35.8 37.5 39.3 39.7 40 41.6 43.5 43.8 44.4 49.3 50.8 51.4 52.7 56.6 57.8 66.9 80.2	XLL 35% A to Z Z to A Select All 8.8 11.2 13.3 15.4 17.9 22.4 26.6 31.2 35.7 40.3 44.5 48.7 53.2 62.3 71.1 88.9 106.8	XLL 35% A to Z Z to A Select All 64 73 74 77 80 85 125 128 129 130 134 136 137 143 150 154 157 159 160 161 163 164 177 267 268 270 271 273 274 275 277 281 427 430 431 432 433 434 435 436 440 441 443 448 461 551 554 555 559 560 564 567 569 577 578 583 854 860 862 866 867 869 875 880 889 907 1452 1458 1476 1492 1495 1537 1585 1601 1674 1707 1708 1719 1732 1742 1745 1747 1751 1760 1763 1780 1796	Max 50% A to Z Z to A Select All 12.5 16 19 22 25.5 32 38 44.5 51 57.5 63.5 69.5 76 89 101.5 127 152.5	Max 50% A to Z Z to A Select All 92 104 105 106 110 115 122 179 182 183 184 186 191 194 195 196 204 214 220 224 227 229 230 233 234 253 381 382 383 385 387 388 390 392 393 395 401 610 614 616 617 619 621 622 629 630 633 640 659 787 792 793 798 799 800 805 806 809 813 824 825 832 1220 1228 1232 1237 1238 1239 1242 1250 1258 1270 1295 2074 2082 2083 2108 2132 2136 2196 2264 2287 2392 2438 2440 2456 2474 2488 2493 2496 2501 2514 2519 2542 2566	Sipariş Kodu A to Z Z to A Select All 1L10025 1L10032 1L10038 1L10045 1L10050 1L10065 1L10075 1L10303 1L13025 1L13032 1L13038 1L13045 1L13050 1L13065 1L13075 1L13090 1L13101 1L13303 1L16025 1L16032 1L16038 1L16045 1L16050 1L16065 1L16075 1L16090 1L16101 1L16115 1L16303 1L19025 1L19032 1L19038 1L19045 1L19050 1L19065 1L19075 1L19090 1L19101 1L19115 1L19126 1L19140 1L19151 1L19303 1L26025 1L26032 1L26038 1L26045 1L26050 1L26065 1L26075 1L26090 1L26101 1L26115 1L26126 1L26140 1L26151 1L26176 1L26202 1L26303 1L32038 1L32045 1L32050 1L32065 1L32075 1L32090 1L32101 1L32115 1L32126 1L32140 1L32151 1L32176 1L32202 1L32252 1L32303 1L38050 1L38065 1L38075 1L38090 1L38101 1L38115 1L38126 1L38140 1L38151 1L38176 1L38202 1L38252 1L38303 1L51065 1L51075 1L51090 1L51101 1L51115 1L51126 1L51140 1L51151 1L51176 1L51202 1L51252 1L51303 1L63075 1L63090 1L63101 1L63115 1L63126 1L63151 1L63176 1L63202 1L63252 1L63303
Dış Çap (mm) A to Z Z to A Select All 10 12.5 16 20 25 32 40 50 63	İç Çap (mm) A to Z Z to A Select All 5 6.3 8 10 12.5 16 20 25 38	Serbest Boy (mm) A to Z Z to A Select All 25 32 38 44 51 64 76 89 102 115 127 139 152 178 203 254 305	(N/mm) A to Z Z to A Select All 0.6 1.2 1.5 2.5 3.2 3.3 3.6 3.9 4 4.1 4.5 4.7 4.8 5 5.1 5.2 5.5 5.8 6.1 6.2 6.5 6.7 6.9 7 7.5 7.8 8 8.1 8.5 8.6 8.7 8.9 9.7 9.8 10.2 10.3 10.5 10.6 10.8 11.4 12.1 12.2 12.3 12.6 13.6 13.8 13.9 14.4 15.3 15.5 15.8 16 16.3 16.4 17.8 18.1 19.2 19.4 19.5 20.2 20.7 21 21.3 21.6 24 24.2 24.5 24.7 25.4 27.4 27.8 28.1 28.6 32.1 32.3 32.8 33.1 33.2 33.3 35.8 37.5 39.3 39.7 40 41.6 43.5 43.8 44.4 49.3 50.8 51.4 52.7 56.6 57.8 66.9 80.2	S1 A to Z Z to A Select All 8.8 11.2 13.3 15.4 17.9 22.4 26.6 31.2 35.7 40.3 44.5 48.7 53.2 62.3 71.1 88.9 106.8	F1 A to Z Z to A Select All 64 73 74 77 80 85 125 128 129 130 134 136 137 143 150 154 157 159 160 161 163 164 177 267 268 270 271 273 274 275 277 281 427 430 431 432 433 434 435 436 440 441 443 448 461 551 554 555 559 560 564 567 569 577 578 583 854 860 862 866 867 869 875 880 889 907 1452 1458 1476 1492 1495 1537 1585 1601 1674 1707 1708 1719 1732 1742 1745 1747 1751 1760 1763 1780 1796	S2 A to Z Z to A Select All 12.5 16 19 22 25.5 32 38 44.5 51 57.5 63.5 69.5 76 89 101.5 127 152.5	F2 A to Z Z to A Select All 92 104 105 106 110 115 122 179 182 183 184 186 191 194 195 196 204 214 220 224 227 229 230 233 234 253 381 382 383 385 387 388 390 392 393 395 401 610 614 616 617 619 621 622 629 630 633 640 659 787 792 793 798 799 800 805 806 809 813 824 825 832 1220 1228 1232 1237 1238 1239 1242 1250 1258 1270 1295 2074 2082 2083 2108 2132 2136 2196 2264 2287 2392 2438 2440 2456 2474 2488 2493 2496 2501 2514 2519 2542 2566	Sipariş Kodu A to Z Z to A Select All 1L10025 1L10032 1L10038 1L10045 1L10050 1L10065 1L10075 1L10303 1L13025 1L13032 1L13038 1L13045 1L13050 1L13065 1L13075 1L13090 1L13101 1L13303 1L16025 1L16032 1L16038 1L16045 1L16050 1L16065 1L16075 1L16090 1L16101 1L16115 1L16303 1L19025 1L19032 1L19038 1L19045 1L19050 1L19065 1L19075 1L19090 1L19101 1L19115 1L19126 1L19140 1L19151 1L19303 1L26025 1L26032 1L26038 1L26045 1L26050 1L26065 1L26075 1L26090 1L26101 1L26115 1L26126 1L26140 1L26151 1L26176 1L26202 1L26303 1L32038 1L32045 1L32050 1L32065 1L32075 1L32090 1L32101 1L32115 1L32126 1L32140 1L32151 1L32176 1L32202 1L32252 1L32303 1L38050 1L38065 1L38075 1L38090 1L38101 1L38115 1L38126 1L38140 1L38151 1L38176 1L38202 1L38252 1L38303 1L51065 1L51075 1L51090 1L51101 1L51115 1L51126 1L51140 1L51151 1L51176 1L51202 1L51252 1L51303 1L63075 1L63090 1L63101 1L63115 1L63126 1L63151 1L63176 1L63202 1L63252 1L63303
10	5	25	8.5	8.8	74	12.5	106	1L10025
10	5	32	6.5	11.2	73	16	104	1L10032
10	5	38	5.5	13.3	73	19	105	1L10038
10	5	44	5	15.4	77	22	110	1L10045
10	5	51	4.5	17.9	80	25.5	115	1L10050
10	5	64	3.3	22.4	74	32	106	1L10065
10	5	76	3.2	26.6	85	38	122	1L10075
10	5	305	0.6	106.8	64	152.5	92	1L10303
12.5	6.3	25	15.5	8.8	136	12.5	194	1L13025
12.5	6.3	32	12.2	11.2	137	16	195	1L13032
12.5	6.3	38	10.3	13.3	137	19	196	1L13038
12.5	6.3	44	8.7	15.4	134	22	191	1L13045
12.5	6.3	51	7.5	17.9	134	25.5	191	1L13050
12.5	6.3	64	5.8	22.4	130	32	186	1L13065
12.5	6.3	76	4.7	26.6	125	38	179	1L13075
12.5	6.3	89	4.1	31.2	128	44.5	182	1L13090
12.5	6.3	102	3.6	35.7	129	51	184	1L13101
12.5	6.3	305	1.2	106.8	128	152.5	183	1L13303
16	8	25	20.2	8.8	177	12.5	253	1L16025
16	8	32	14.4	11.2	161	16	230	1L16032
16	8	38	12.3	13.3	164	19	234	1L16038
16	8	44	10.6	15.4	163	22	233	1L16045
16	8	51	8.9	17.9	159	25.5	227	1L16050
16	8	64	7	22.4	157	32	224	1L16065
16	8	76	5.8	26.6	154	38	220	1L16075
16	8	89	4.8	31.2	150	44.5	214	1L16090
16	8	102	4	35.7	143	51	204	1L16101
16	8	115	3.9	40.3	157	57.5	224	1L16115
16	8	305	1.5	106.8	160	152.5	229	1L16303
20	10	25	32.1	8.8	281	12.5	401	1L19025
20	10	32	24.7	11.2	277	16	395	1L19032
20	10	38	20.7	13.3	275	19	393	1L19038
20	10	44	17.8	15.4	274	22	392	1L19045
20	10	51	15.3	17.9	273	25.5	390	1L19050
20	10	64	12.1	22.4	271	32	387	1L19065
20	10	76	10.2	26.6	271	38	388	1L19075
20	10	89	8.6	31.2	268	44.5	383	1L19090
20	10	102	7.5	35.7	268	51	383	1L19101
20	10	115	6.7	40.3	270	57.5	385	1L19115
20	10	127	6.1	44.5	271	63.5	387	1L19126
20	10	139	5.5	48.7	268	69.5	382	1L19140
20	10	152	5.1	53.2	271	76	388	1L19151
20	10	305	2.5	106.8	267	152.5	381	1L19303
25	12.5	25	52.7	8.8	461	12.5	659	1L26025
25	12.5	32	40	11.2	448	16	640	1L26032
25	12.5	38	33.3	13.3	443	19	633	1L26038
25	12.5	44	28.6	15.4	440	22	629	1L26045
25	12.5	51	24.7	17.9	441	25.5	630	1L26050
25	12.5	64	19.4	22.4	435	32	621	1L26065
25	12.5	76	16.3	26.6	434	38	619	1L26075
25	12.5	89	13.9	31.2	433	44.5	619	1L26090
25	12.5	102	12.1	35.7	432	51	617	1L26101
25	12.5	115	10.8	40.3	435	57.5	621	1L26115
25	12.5	127	9.8	44.5	436	63.5	622	1L26126
25	12.5	139	8.9	48.7	433	69.5	619	1L26140
25	12.5	152	8.1	53.2	431	76	616	1L26151
25	12.5	178	6.9	62.3	430	89	614	1L26176
25	12.5	203	6.1	71.1	433	101.5	619	1L26202
25	12.5	305	4	106.8	427	152.5	610	1L26303
32	16	38	43.8	13.3	583	19	832	1L32038
32	16	44	37.5	15.4	578	22	825	1L32045
32	16	51	32.3	17.9	577	25.5	824	1L32050
32	16	64	25.4	22.4	569	32	813	1L32065
32	16	76	21.3	26.6	567	38	809	1L32075
32	16	89	18.1	31.2	564	44.5	805	1L32090
32	16	102	15.8	35.7	564	51	806	1L32101
32	16	115	13.9	40.3	559	57.5	799	1L32115
32	16	127	12.6	44.5	560	63.5	800	1L32126
32	16	139	11.4	48.7	555	69.5	792	1L32140
32	16	152	10.5	53.2	559	76	798	1L32151
32	16	178	8.9	62.3	554	89	792	1L32176
32	16	203	7.8	71.1	554	101.5	792	1L32202
32	16	254	6.2	88.9	551	127	787	1L32252
32	16	305	5.2	106.8	555	152.5	793	1L32303
40	20	51	50.8	17.9	907	25.5	1295	1L38050
40	20	64	39.7	22.4	889	32	1270	1L38065
40	20	76	33.1	26.6	880	38	1258	1L38075
40	20	89	28.1	31.2	875	44.5	1250	1L38090
40	20	102	24.5	35.7	875	51	1250	1L38101
40	20	115	21.6	40.3	869	57.5	1242	1L38115
40	20	127	19.5	44.5	867	63.5	1238	1L38126
40	20	139	17.8	48.7	866	69.5	1237	1L38140
40	20	152	16.3	53.2	867	76	1239	1L38151
40	20	178	13.8	62.3	860	89	1228	1L38176
40	20	203	12.1	71.1	860	101.5	1228	1L38202
40	20	254	9.7	88.9	862	127	1232	1L38252
40	20	305	8	106.8	854	152.5	1220	1L38303
50	25	64	80.2	22.4	1796	32	2566	1L51065
50	25	76	66.9	26.6	1780	38	2542	1L51075
50	25	89	56.6	31.2	1763	44.5	2519	1L51090
50	25	102	49.3	35.7	1760	51	2514	1L51101
50	25	115	43.5	40.3	1751	57.5	2501	1L51115
50	25	127	39.3	44.5	1747	63.5	2496	1L51126
50	25	139	35.8	48.7	1742	69.5	2488	1L51140
50	25	152	32.8	53.2	1745	76	2493	1L51151
50	25	178	27.8	62.3	1732	89	2474	1L51176
50	25	203	24.2	71.1	1719	101.5	2456	1L51202
50	25	254	19.2	88.9	1707	127	2438	1L51252
50	25	305	16	106.8	1708	152.5	2440	1L51303
63	38	76	57.8	26.6	1537	38	2196	1L63075
63	38	89	51.4	31.2	1601	44.5	2287	1L63090
63	38	102	44.4	35.7	1585	51	2264	1L63101
63	38	115	41.6	40.3	1674	57.5	2392	1L63115
63	38	127	33.2	44.5	1476	63.5	2108	1L63126
63	38	152	27.4	53.2	1458	76	2082	1L63151
63	38	178	24	62.3	1495	89	2136	1L63176
63	38	203	21	71.1	1492	101.5	2132	1L63202
63	38	254	16.4	88.9	1458	127	2083	1L63252
63	38	305	13.6	106.8	1452	152.5	2074	1L63303
