2S Serisi Mavi Yay  - Orta Yük Kalıp Yayı

XLL% Uzun ömür için kapanma oranı Max% Maksimum çalışma mesafesi
S1 Stroke mm F1 Yük (N)
S2 Stroke mm F2 Yük (N)
YÜK: Yayın 1mm kapanması için gerekli olan kuvvet.
(1N = 0,102 Kg, 1Kg = 9,81 N)
TOLERANS
Serbest Boy Minumum ± mm 0,75 veya ± 1% içindedir.
Dış Çap Yayların dış çapı her zaman katalogta belirtilen gövde çapondan daha küçüktür.
İç Çap Yayların iç çapı her zaman katalogta belirteilen kılavuz pimi çapında daha büyüktür.

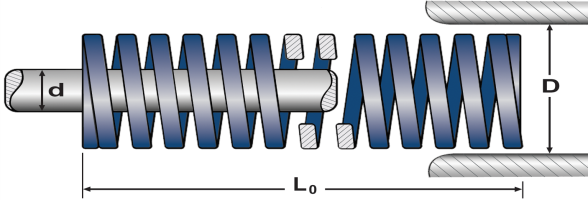

D d Lo R XLL 25% XLL 25% Max 37,5% Max 37,5% Sipariş Kodu
Dış Çap (mm) İç Çap (mm) Serbest Boy (mm) (N/mm) S1 F1 S2 F2 Sipariş Kodu
10 5 25 16 6.3 100 9.4 150 2S10025
10 5 32 13 8 104 12 156 2S10032
10 5 38 11.9 9.5 113 14.3 170 2S10038
10 5 44 10.3 11 113 16.5 170 2S10045
10 5 51 8.9 12.8 113 19.1 170 2S10050
10 5 64 7.5 16 120 24 180 2S10065
10 5 76 6.2 19 118 28.5 177 2S10075
10 5 305 1.6 76.3 122 114.4 183 2S10303
12.5 6.3 25 30 6.3 188 9.4 281 2S13025
12.5 6.3 32 24.8 8 198 12 298 2S13032
12.5 6.3 38 21.4 9.5 203 14.3 305 2S13038
12.5 6.3 44 18 11 198 16.5 297 2S13045
12.5 6.3 51 15.5 12.8 198 19.1 296 2S13050
12.5 6.3 64 12.1 16 194 24 290 2S13065
12.5 6.3 76 10.2 19 194 28.5 291 2S13075
12.5 6.3 89 8.4 22.3 187 33.4 280 2S13090
12.5 6.3 102 7.1 25.5 181 38.3 272 2S13101
12.5 6.3 305 2.4 76.3 183 114.4 275 2S13303
16 8 25 49.4 6.3 309 9.4 463 2S16025
16 8 32 38.5 8 308 12 462 2S16032
16 8 38 33.9 9.5 322 14.3 483 2S16038
16 8 44 30 11 330 16.5 495 2S16045
16 8 51 26.4 12.8 337 19.1 505 2S16050
16 8 64 20.5 16 328 24 492 2S16065
16 8 76 17.8 19 338 28.5 507 2S16075
16 8 89 15.2 22.3 338 33.4 507 2S16090
16 8 102 13.5 25.5 344 38.3 516 2S16101
16 8 115 12 28.8 345 43.1 518 2S16115
16 8 305 4.3 76.3 328 114.4 492 2S16303
20 10 25 98 6.3 613 9.4 919 2S19025
20 10 32 72.6 8 581 12 871 2S19032
20 10 38 56 9.5 532 14.3 798 2S19038
20 10 44 47.5 11 523 16.5 784 2S19045
20 10 51 41.7 12.8 532 19.1 798 2S19050
20 10 64 32.3 16 517 24 775 2S19065
20 10 76 25.1 19 477 28.5 715 2S19075
20 10 89 22 22.3 490 33.4 734 2S19090
20 10 102 19.8 25.5 505 38.3 757 2S19101
20 10 115 18.1 28.8 520 43.1 781 2S19115
20 10 127 16.6 31.8 527 47.6 791 2S19126
20 10 139 15.1 34.8 525 52.1 787 2S19140
20 10 152 13.2 38 502 57 752 2S19151
20 10 305 6.1 76.3 465 114.4 698 2S19303
25 12.5 25 157 6.2 981 9.4 1472 2S26025
25 12.5 32 118 8 944 12 1416 2S26032
25 12.5 38 93 9.5 884 14.3 1325 2S26038
25 12.5 44 80.8 11 889 16.5 1333 2S26045
25 12.5 51 68.6 12.8 875 19.1 1312 2S26050
25 12.5 64 53 16 848 24 1272 2S26065
25 12.5 76 43.2 19 821 28.5 1231 2S26075
25 12.5 89 38.2 22.3 850 33.4 1275 2S26090
25 12.5 102 33 25.5 842 38.3 1262 2S26101
25 12.5 115 28 28.8 805 43.1 1208 2S26115
25 12.5 127 25.9 31.8 822 47.6 1233 2S26126
25 12.5 139 23.2 34.8 806 52.1 1209 2S26140
25 12.5 152 20.8 38 790 57 1186 2S26151
25 12.5 178 17.8 44.5 792 66.8 1188 2S26176
25 12.5 203 15.8 50.8 802 76.1 1203 2S26202
25 12.5 305 10.2 76.3 778 114.4 1167 2S26303
32 16 38 185 9.5 1758 14.3 2636 2S32038
32 16 44 158 11 1738 16.5 2607 2S32045
32 16 51 134 12.8 1709 19.1 2563 2S32050
32 16 64 99 16 1584 24 2376 2S32065
32 16 76 80.5 19 1530 28.5 2294 2S32075
32 16 89 69.1 22.3 1537 33.4 2306 2S32090
32 16 102 58.8 25.5 1499 38.3 2249 2S32101
32 16 115 51.5 28.8 1481 43.1 2221 2S32115
32 16 127 44.8 31.8 1422 47.6 2134 2S32126
32 16 139 42.3 34.8 1470 52.1 2205 2S32140
32 16 152 37.8 38 1436 57 2155 2S32151
32 16 178 32.5 44.5 1446 66.8 2169 2S32176
32 16 203 28.9 50.8 1467 76.1 2200 2S32202
32 16 254 22.2 63.5 1410 95.3 2115 2S32252
32 16 305 18.3 76.3 1395 114.4 2093 2S32303
40 20 51 181.6 12.8 2315 19.1 3473 2S38050
40 20 64 140 16 2240 24 3360 2S38065
40 20 76 108 19 2052 28.5 3078 2S38075
40 20 89 90.7 22.3 2018 33.4 3027 2S38090
40 20 102 81 25.5 2066 38.3 3098 2S38101
40 20 115 71.8 28.8 2064 43.1 3096 2S38115
40 20 127 62.7 31.8 1991 47.6 2986 2S38126
40 20 139 57.5 34.8 1998 52.1 2997 2S38140
40 20 152 51.6 38 1961 57 2941 2S38151
40 20 160 47.5 40 1900 60 2850 2S38160
40 20 178 44.1 44.5 1962 66.8 2944 2S38176
40 20 203 36.7 50.8 1863 76.1 2794 2S38202
40 20 254 30.1 63.5 1911 95.3 2867 2S38252
40 20 305 24.6 76.3 1876 114.4 2814 2S38303
50 25 64 209 16 3344 24 5016 2S51065
50 25 76 168 19 3192 28.5 4788 2S51075
50 25 89 140 22.3 3115 33.4 4673 2S51090
50 25 102 119 25.5 3035 38.3 4552 2S51101
50 25 115 106 28.8 3048 43.1 4571 2S51115
50 25 127 97 31.8 3080 47.6 4620 2S51126
50 25 139 87 34.8 3023 52.1 4535 2S51140
50 25 152 80 38 3040 57 4560 2S51151
50 25 160 76 40 3040 60 4560 2S51160
50 25 178 69.5 44.5 3093 66.8 4639 2S51176
50 25 203 59.8 50.8 3035 76.1 4552 2S51202
50 25 229 50.9 57.3 2914 85.9 4371 2S51229
50 25 254 46 63.5 2921 95.3 4382 2S51252
50 25 305 38.6 76.3 2943 114.4 4415 2S51303
63 38 76 320 19 6080 28.5 9120 2S63075
63 38 89 260 22.3 5785 33.4 8678 2S63090
63 38 102 221 25.5 5636 38.3 8453 2S63101
63 38 115 187 28.8 5376 43.1 8064 2S63115
63 38 127 168 31.8 5334 47.6 8001 2S63126
63 38 152 136 38 5168 57 7752 2S63151
63 38 160 128 40 5120 60 7680 2S63160
63 38 178 114 44.5 5073 66.8 7610 2S63176
63 38 203 100 50.8 5075 76.1 7613 2S63202
63 38 229 89.2 57.3 5107 85.9 7660 2S63229
63 38 254 78.4 63.5 4978 95.3 7468 2S63252
63 38 305 64.7 76.3 4933 114.4 7400 2S63303
63 38 315 62.8 78.8 4946 118.1 7418 2S63315
63 38 400 48.5 100 4850 150 7275 2S63400
