4S Serisi Sarı Yay - Ekstra Ağır Yük Kalıp Yayı

XLL% Uzun ömür için kapanma oranı Max% Maksimum çalışma mesafesi
S1 Stroke mm F1 Yük (N)
S2 Stroke mm F2 Yük (N)
R: Yayın 1mm kapanması için gerekli olan kuvvet.
(1N = 0,102 Kg, 1Kg = 9,81 N)
TOLERANS
Serbest Boy Minumum ± mm 0,75 veya ± 1% içindedir.
Dış çap Yayların dış çapı her zaman katalogta belirtilen gövde çapondan daha küçüktür.
İç çap Yayların iç çapı her zaman katalogta belirteilen kılavuz pimi çapında daha büyüktür.

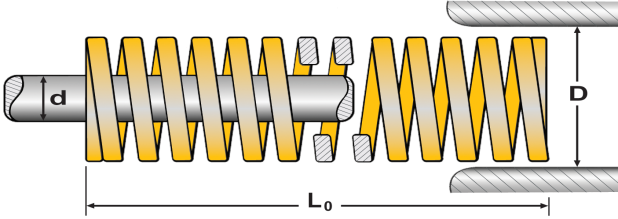

D d Lo R XLL 17% XLL 17% Max 25% Max 25% Sipariş Kodu
Dış Çap (mm) İç Çap (mm) Serbest Boy (mm) (N/mm) S1 F1 S2 F2 Sipariş Kodu
10 5 25 36.8 4.3 156 6.3 230 4S10025
10 5 32 27.9 5.4 152 8 223 4S10032
10 5 38 23.7 6.5 153 9.5 225 4S10038
10 5 44 19.2 7.5 144 11 211 4S10045
10 5 51 16.5 8.7 143 12.8 210 4S10050
10 5 64 13.2 10.9 144 16 211 4S10065
10 5 76 10.9 12.9 141 19 207 4S10075
10 5 305 2.6 51.9 135 76.3 198 4S10303
12.5 6.3 25 58.5 4.3 249 6.3 366 4S13025
12.5 6.3 32 43.9 5.4 239 8 351 4S13032
12.5 6.3 38 36 6.5 233 9.5 342 4S13038
12.5 6.3 44 30.3 7.5 227 11 333 4S13045
12.5 6.3 51 26.2 8.7 227 12.8 334 4S13050
12.5 6.3 64 21.2 10.9 231 16 339 4S13065
12.5 6.3 76 17.1 12.9 221 19 325 4S13075
12.5 6.3 89 14.5 15.1 219 22.3 323 4S13090
12.5 6.3 102 12.5 17.3 217 25.5 319 4S13101
12.5 6.3 305 4.3 51.9 223 76.3 328 4S13303
16 8 25 118 4.3 502 6.3 738 4S16025
16 8 32 89 5.4 484 8 712 4S16032
16 8 38 72.1 6.5 466 9.5 685 4S16038
16 8 44 60.9 7.5 456 11 670 4S16045
16 8 51 52.3 8.7 453 12.8 667 4S16050
16 8 64 41.2 10.9 448 16 659 4S16065
16 8 76 34.1 12.9 441 19 648 4S16075
16 8 89 29.5 15.1 446 22.3 656 4S16090
16 8 102 25.6 17.3 444 25.5 653 4S16101
16 8 115 22.8 19.6 446 28.8 656 4S16115
16 8 305 8.4 51.9 436 76.3 641 4S16303
20 10 25 293 4.3 1245 6.3 1831 4S19025
20 10 32 224 5.4 1219 8 1792 4S19032
20 10 38 177 6.5 1143 9.5 1682 4S19038
20 10 44 149 7.5 1115 11 1639 4S19045
20 10 51 128 8.7 1110 12.8 1632 4S19050
20 10 64 99 10.9 1077 16 1584 4S19065
20 10 76 81.7 12.9 1056 19 1552 4S19075
20 10 89 69.5 15.1 1052 22.3 1546 4S19090
20 10 102 60.6 17.3 1051 25.5 1545 4S19101
20 10 115 53 19.6 1036 28.8 1524 4S19115
20 10 127 47.5 21.6 1026 31.8 1508 4S19126
20 10 139 43 23.6 1016 34.8 1494 4S19140
20 10 152 39 25.8 1008 38 1482 4S19151
20 10 305 20 51.9 1037 76.3 1525 4S19303
25 12.5 25 488 4.3 2074 6.3 3050 4S26025
25 12.5 32 374.4 5.4 2037 8 2995 4S26032
25 12.5 38 346 6.5 2235 9.5 3287 4S26038
25 12.5 44 244 7.5 1825 11 2684 4S26045
25 12.5 51 207.5 8.7 1799 12.8 2646 4S26050
25 12.5 64 161 10.9 1752 16 2576 4S26065
25 12.5 76 130.8 12.9 1690 19 2485 4S26075
25 12.5 89 110.5 15.1 1672 22.3 2459 4S26090
25 12.5 102 96.3 17.3 1670 25.5 2456 4S26101
25 12.5 115 85.7 19.6 1675 28.8 2464 4S26115
25 12.5 127 76.3 21.6 1647 31.8 2423 4S26126
25 12.5 139 69.5 23.6 1642 34.8 2415 4S26140
25 12.5 152 63.5 25.8 1641 38 2413 4S26151
25 12.5 178 53.9 30.3 1631 44.5 2399 4S26176
25 12.5 203 47 34.5 1622 50.8 2385 4S26202
25 12.5 305 30.9 51.9 1602 76.3 2356 4S26303
32 16 38 528.2 6.5 3412 9.5 5018 4S32038
32 16 44 424.4 7.5 3175 11 4668 4S32045
32 16 51 336 8.7 2913 12.8 4284 4S32050
32 16 64 269.2 10.9 2929 16 4307 4S32065
32 16 76 218.5 12.9 2823 19 4152 4S32075
32 16 89 180.3 15.1 2728 22.3 4012 4S32090
32 16 102 155 17.3 2688 25.5 3953 4S32101
32 16 115 140 19.6 2737 28.8 4025 4S32115
32 16 127 124 21.6 2677 31.8 3937 4S32126
32 16 139 112 23.6 2647 34.8 3892 4S32140
32 16 152 102 25.8 2636 38 3876 4S32151
32 16 178 88.2 30.3 2669 44.5 3925 4S32176
32 16 203 76 34.5 2623 50.8 3857 4S32202
32 16 254 60.8 43.2 2625 63.5 3861 4S32252
32 16 305 49 51.9 2541 76.3 3736 4S32303
40 20 51 628 8.7 5445 12.8 8007 4S38050
40 20 64 487 10.9 5299 16 7792 4S38065
40 20 76 379 12.9 4897 19 7201 4S38075
40 20 89 321 15.1 4857 22.3 7142 4S38090
40 20 102 281 17.3 4873 25.5 7166 4S38101
40 20 115 245 19.6 4790 28.8 7044 4S38115
40 20 127 221 21.6 4771 31.8 7017 4S38126
40 20 139 185 23.6 4372 34.8 6429 4S38140
40 20 152 168 25.8 4341 38 6384 4S38151
40 20 178 150 30.3 4539 44.5 6675 4S38176
40 20 203 132 34.5 4555 50.8 6699 4S38202
40 20 254 107 43.2 4620 63.5 6795 4S38252
40 20 305 87.8 51.9 4552 76.3 6695 4S38303
50 25 64 709 10.9 7714 16 11344 4S51065
50 25 76 572 12.9 7390 19 10868 4S51075
50 25 89 475 15.1 7187 22.3 10569 4S51090
50 25 102 405 17.3 7023 25.5 10328 4S51101
50 25 115 352 19.6 6882 28.8 10120 4S51115
50 25 127 316 21.6 6822 31.8 10033 4S51126
50 25 139 289 23.6 6829 34.8 10043 4S51140
50 25 152 255 25.8 6589 38 9690 4S51151
50 25 178 216 30.3 6536 44.5 9612 4S51176
50 25 203 187 34.5 6453 50.8 9490 4S51202
50 25 254 153 43.2 6607 63.5 9716 4S51252
50 25 305 127 51.9 6585 76.3 9684 4S51303
63 38 76 842 12.9 10879 19 15998 4S63075
63 38 89 726 15.1 10984 22.3 16154 4S63090
63 38 102 656 17.3 11375 25.5 16728 4S63101
63 38 115 534 19.6 10440 28.8 15353 4S63115
63 38 127 480 21.6 10363 31.8 15240 4S63126
63 38 152 396 25.8 10233 38 15048 4S63151
63 38 178 335 30.3 10137 44.5 14908 4S63176
63 38 203 297 34.5 10249 50.8 15073 4S63202
63 38 254 235 43.2 10147 63.5 14923 4S63252
63 38 305 194 51.9 10059 76.3 14793 4S63303
