D19.10.02 Emniyet Plakalı Taşıma Braketi / Lifting Brackets With Rope Stop Safety

Malzeme - Material : 1.0503(C45)

UYARI : Güvenlik nedeniyle kalıp agırlıgı iki adet tasıma braketinin tasıyabilecegi maksimum yük miktarını asmamalıdır.

d1 A to Z Z to A Select All 16 20 25 32 40 50 63 80 100	d5 A to Z Z to A Select All 60 70 110 150	I1 A to Z Z to A Select All 80 90 100 120 140 160 200 250 300	I2 A to Z Z to A Select All 6 8 10 12 15	I3 A to Z Z to A Select All 20 25 30 32 40 45 50 65 80	I4 A to Z Z to A Select All 10 12 16 18 20 22 25 30	I5 A to Z Z to A Select All 44 47 50 62 72 81 98 125 155	f A to Z Z to A Select All 20 25 35 40 50 60 80 100 120	Max. Taşıma Kap / Max. Load - (Kg) A to Z Z to A Select All 320 630 1250 2000 3200 5000 8000 12500 20000	Max. Kalıp Ağırlığı Max. Die - Weight (Kg) A to Z Z to A Select All 640 1260 2500 4000 6400 10000 16000 25000 40000	Form A to Z Z to A Select All A B	Siparis Kodu / Order Code A to Z Z to A Select All D19.10.02_020080 / KTB03_16 D19.10.02_025090 / KTB03_20 D19.10.02_035100 / KTB03_25 D19.10.02_040120 KTB03_32 D19.10.02_050140 / KTB03_40 D19.10.02_060160 / KTB03_50 D19.10.02_080200 D19.10.02_100250 D19.10.02_120300
16	60	80	6	20	10	44	20	320	640	A	D19.10.02_020080 / KTB03_16
20	70	90	8	25	10	47	25	630	1260	A	D19.10.02_025090 / KTB03_20
25	70	100	8	30	12	50	35	1250	2500	A	D19.10.02_035100 / KTB03_25
32	110	120	10	32	16	62	40	2000	4000	A	D19.10.02_040120 KTB03_32
40	110	140	10	40	18	72	50	3200	6400	A	D19.10.02_050140 / KTB03_40
50	150	160	12	45	22	81	60	5000	10000	A	D19.10.02_060160 / KTB03_50

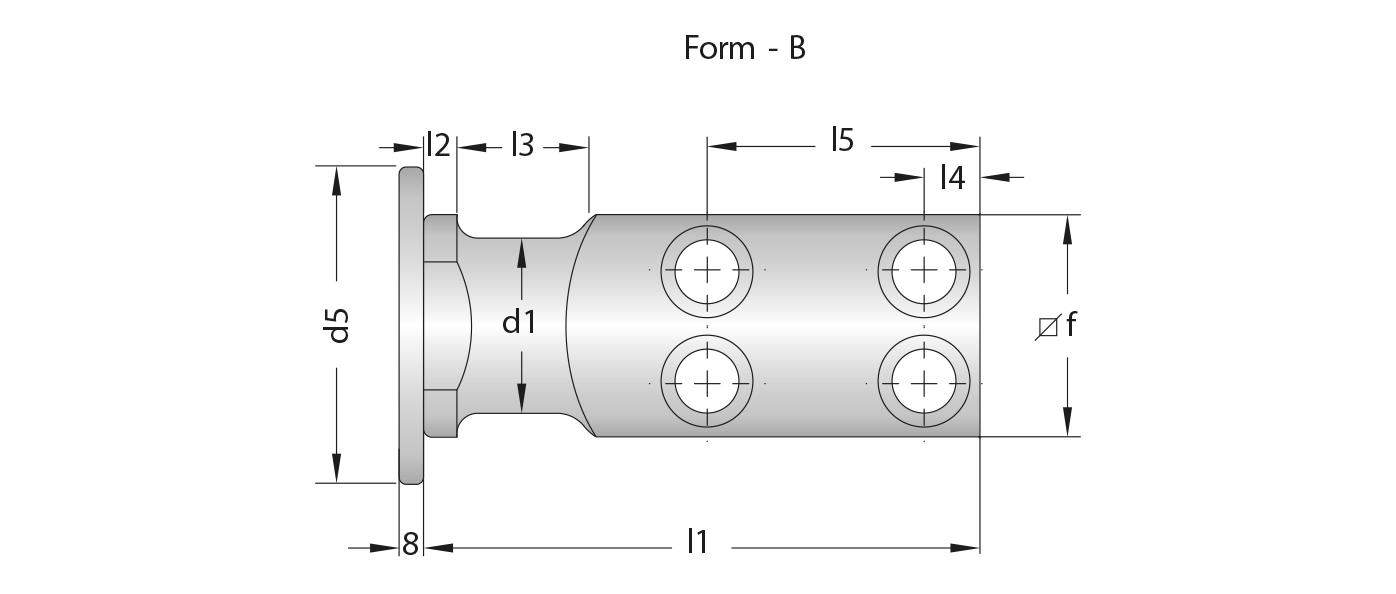

63	150	200	12	50	20	98	80	8000	16000	B	D19.10.02_080200
80	150	250	15	65	25	125	100	12500	25000	B	D19.10.02_100250
100	150	300	15	80	30	155	120	20000	40000	B	D19.10.02_120300
