D40 Tespit Burcu - Centring Sleves

Malzeme - Material 1.7131 (16MnCr5)
Sertlik - Hardness 62 ± 2 HRC
Isıl İşlem - Heat Treatment Sementasyon (Case Hardened)
≈DIN 16759

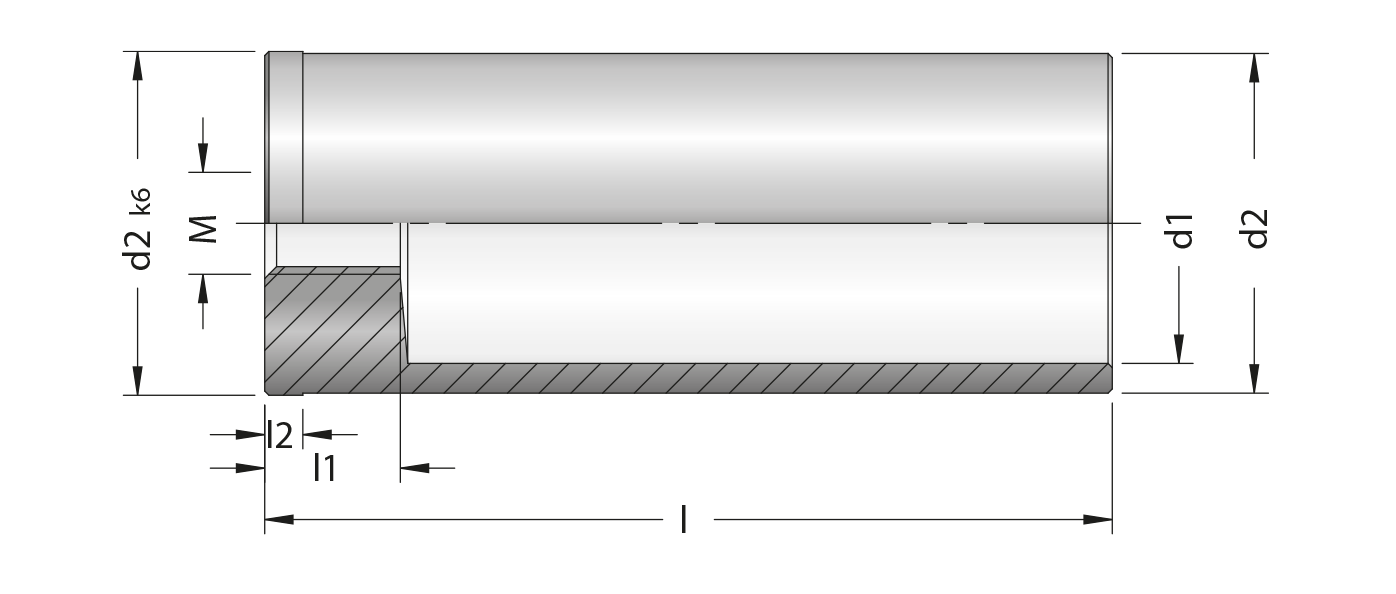

d1 d2 d2 Tol. M I1 I2 I Sipariş Kodu | Order Code
16 20 g6 12 10 2 30 D40_20 30
16 20 g6 12 10 2 40 D40_20 40
16 20 g6 12 10 2 60 D40_20 60
16 20 g6 12 10 2 80 D40_20 80
16 20 g6 12 10 2 100 D40_20100
16 20 g6 12 10 2 120 D40_20120
16 20 g6 12 10 2 140 D40_20140
16 20 g6 12 10 2 160 D40_20160
21 26 g6 12 13 2.5 30 D40_26 30
21 26 g6 12 13 2.5 40 D40_26 40
21 26 g6 12 13 2.5 60 D40_26 60
21 26 g6 12 13 2.5 80 D40_26 80
21 26 g6 12 13 2.5 100 D40_26100
21 26 g6 12 13 2.5 120 D40_26120
21 26 g6 12 13 2.5 140 D40_26140
21 26 g6 12 13 2.5 160 D40_26160
21 26 g6 12 13 2.5 180 D40_26180
25 30 g6 12 13 2.5 40 D40_30 40
25 30 g6 12 13 2.5 60 D40_30 60
25 30 g6 12 13 2.5 80 D40_30 80
25 30 g6 12 13 2.5 100 D40_30100
25 30 g6 12 13 2.5 120 D40_30120
25 30 g6 12 13 2.5 140 D40_30140
25 30 g6 12 13 2.5 160 D40_30160
25 30 g6 12 13 2.5 180 D40_30180
25 30 g6 12 13 2.5 200 D40_30200
25 30 g6 12 13 2.5 240 D40_30240
33 42 g6 12 16 4.5 40 D40_42 40
33 42 g6 12 16 4.5 60 D40_42 60
33 42 g6 12 16 4.5 80 D40_42 80
33 42 g6 12 16 4.5 100 D40_42100
33 42 g6 12 16 4.5 120 D40_42120
33 42 g6 12 16 4.5 140 D40_42140
33 42 g6 12 16 4.5 160 D40_42160
33 42 g6 12 16 4.5 180 D40_42180
33 42 g6 12 16 4.5 200 D40_42200
33 42 g6 12 16 4.5 220 D40_42220
33 42 g6 12 16 4.5 260 D40_42260
33 42 g6 12 16 4.5 300 D40_42300
43 54 f6 12 16 4.5 60 D40_54 60
43 54 f6 12 16 4.5 80 D40_54 80
43 54 f6 12 16 4.5 120 D40_54120
43 54 f6 12 16 4.5 160 D40_54160
43 54 f6 12 16 4.5 200 D40_54200
43 54 f6 12 16 4.5 240 D40_54240
43 54 f6 12 16 4.5 280 D40_54280
