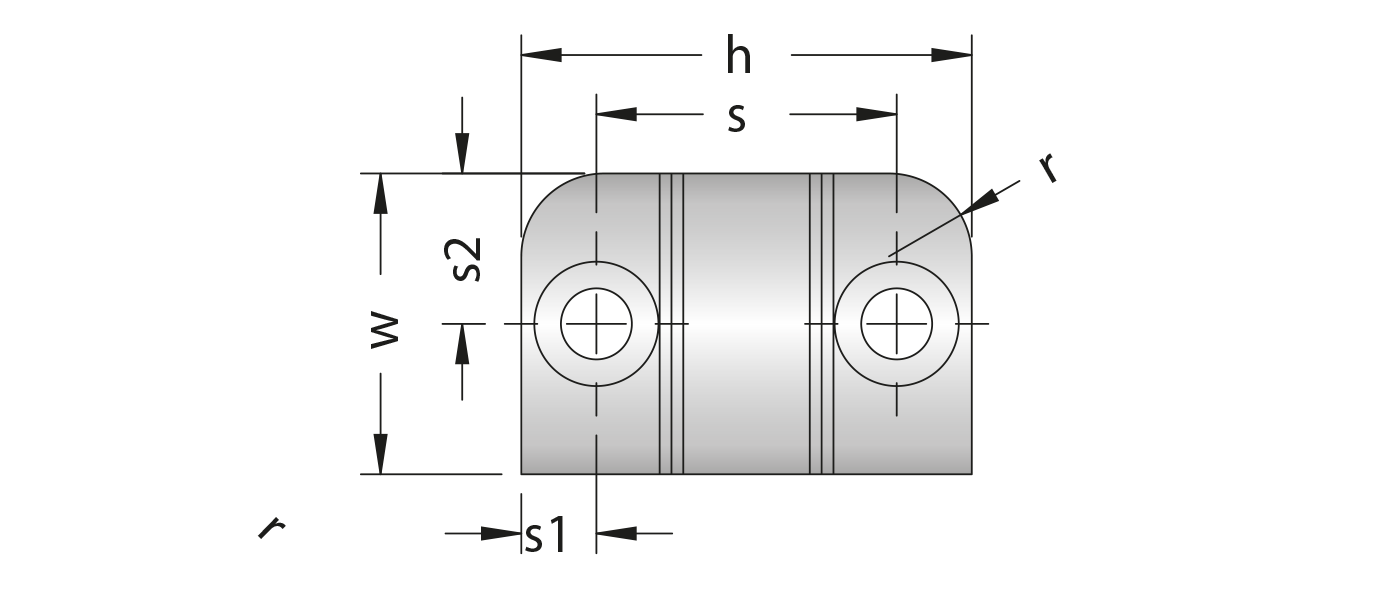

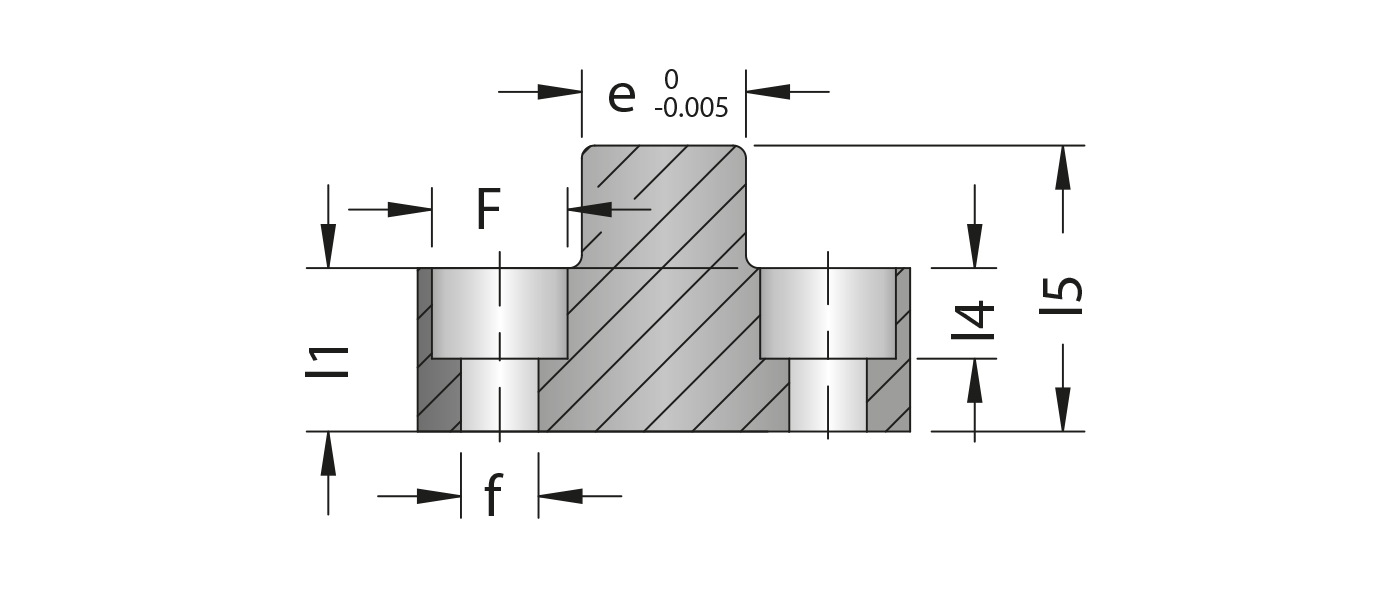

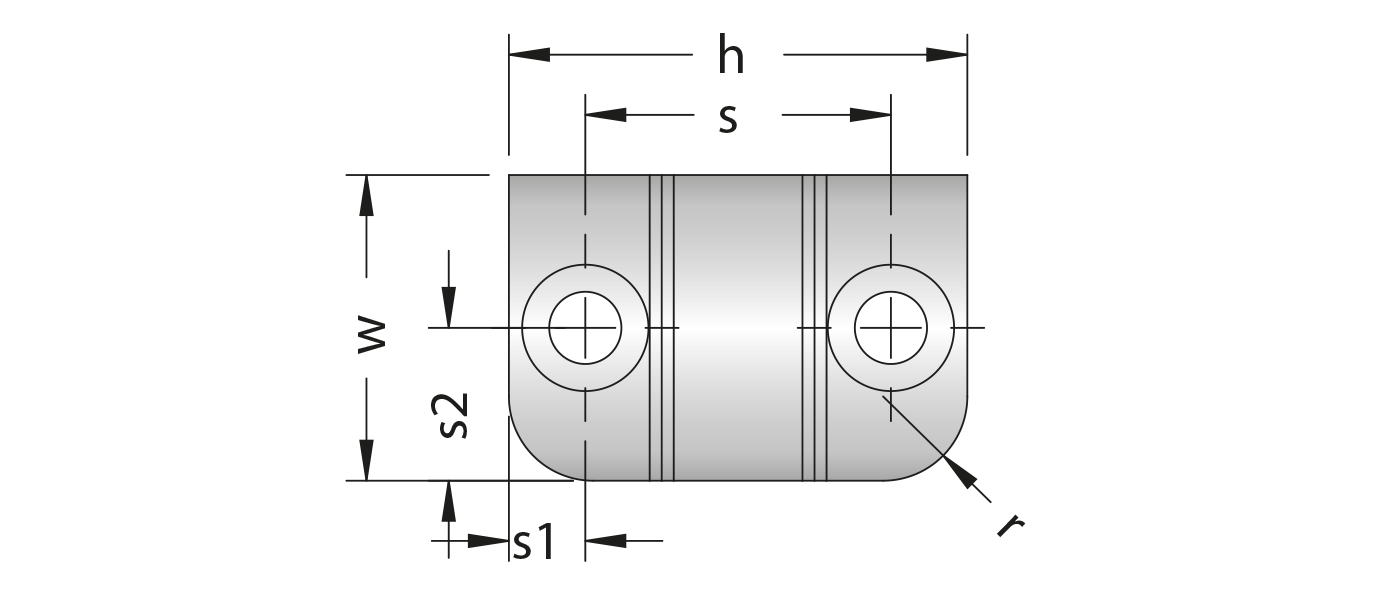

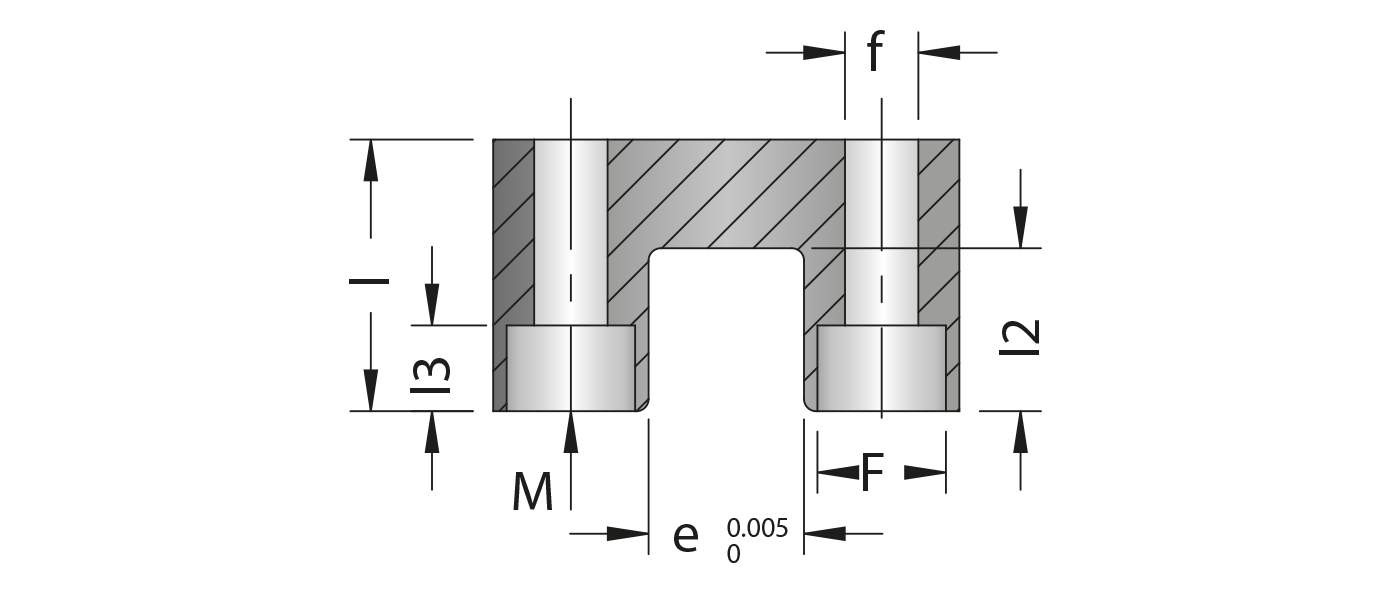

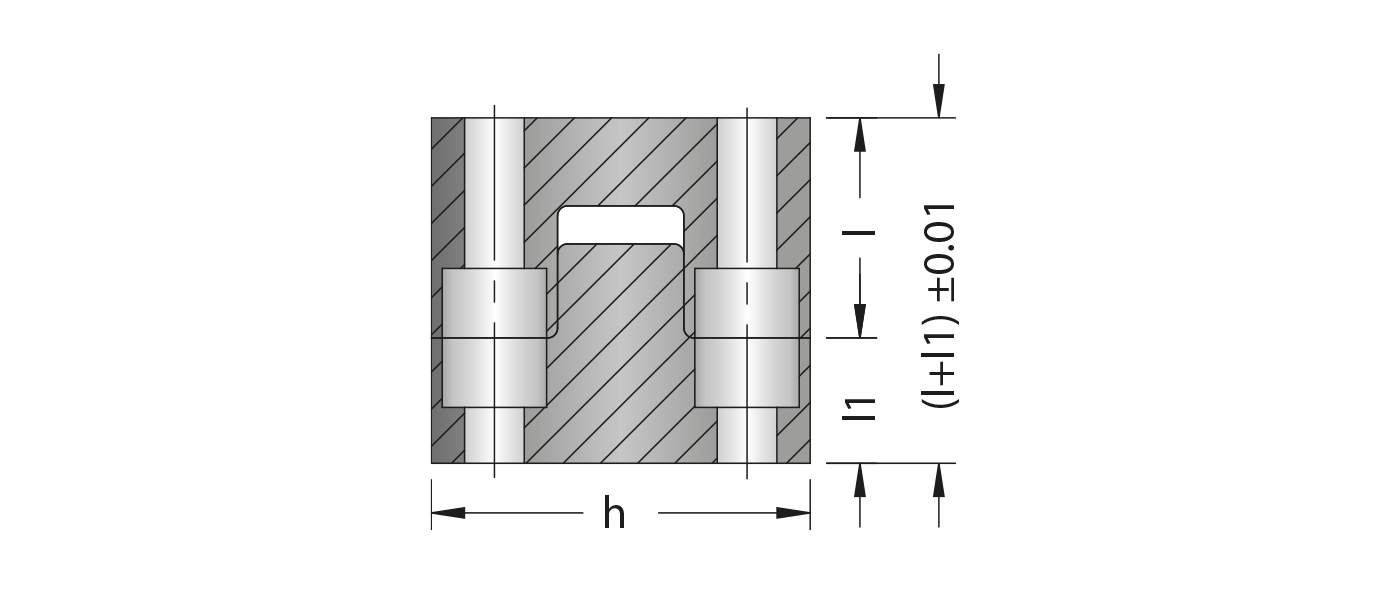

D50.01.01 Kare Kilitleme - Square Interlock
Malzeme - Material 1.2510
Sertlik - Hardness 50 - 54 HRC
| h | w | e | f | r | F | M | s | s1 | s2 | I1 | I2 | I3 | I4 | I5 | I | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 38.1 | 25.4 | 12.7 | 6 | 7 | 10.5 | M5 | 25.4 | 6.35 | 12.7 | 9,47 | 13,13 | 7 | 7 | 22,1 | 22.17 | D50.01.01_15 |
| 63.5 | 38.1 | 25.4 | 7.2 | 8.5 | 12 | M6 | 44.45 | 9.53 | 19.05 | 15,82 | 19,48 | 8 | 8 | 34,8 | 34.87 | D50.01.01_25 |
| 88.9 | 50.8 | 36.58 | 10.5 | 9.5 | 15.5 | M8 | 63.5 | 12.7 | 25.4 | 19 | 25,7 | 11 | 11 | 44,2 | 44.4 | D50.01.01_35 |
