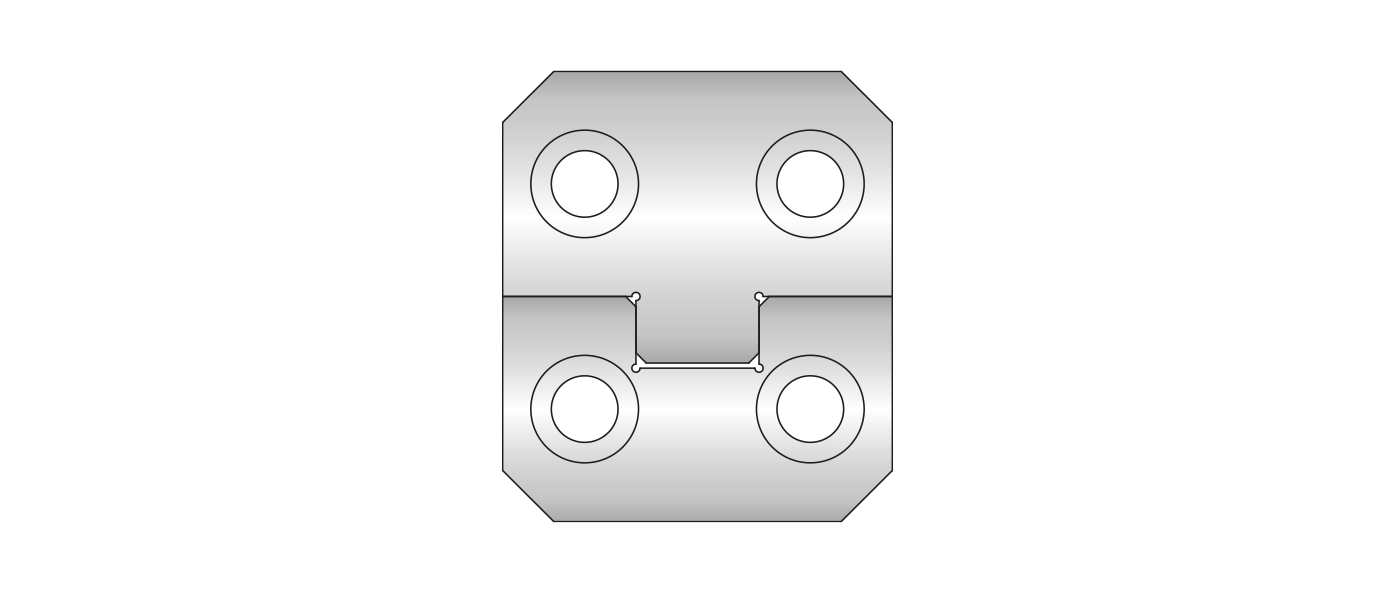

D50.01.03 Kare Kilitleme - Square Interlock
Malzeme - Material JIS / SKS93 (YK30)
Sertlik - Hardness 58 - 60 HRC

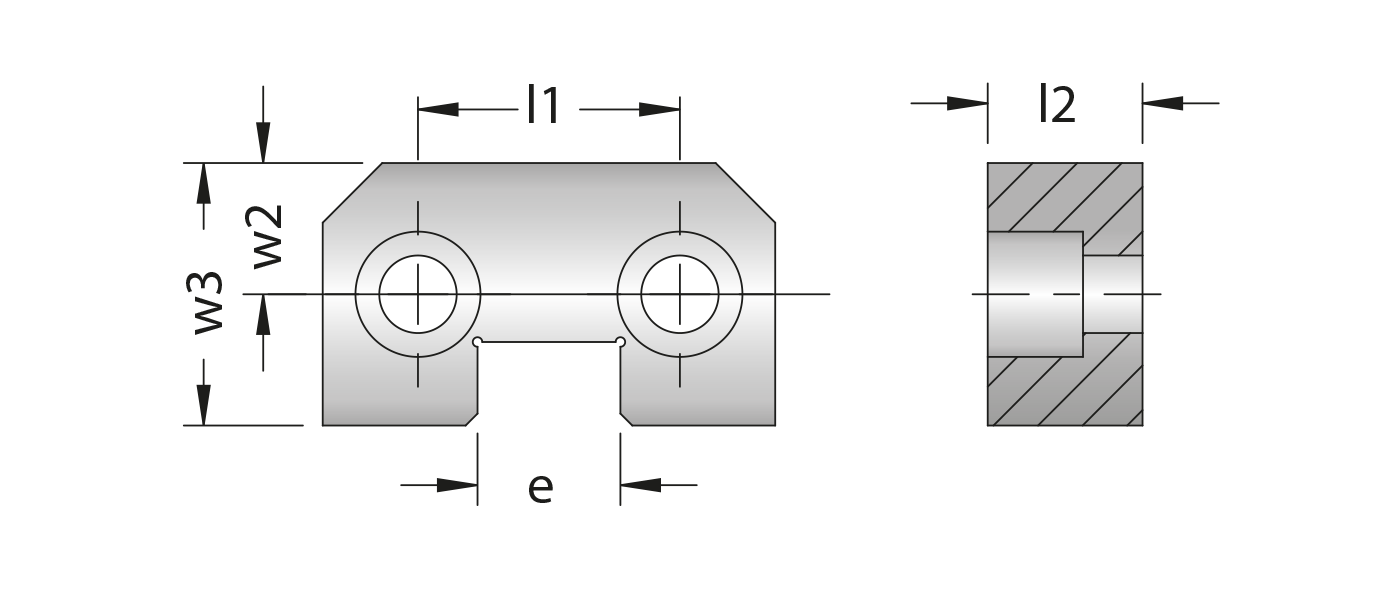

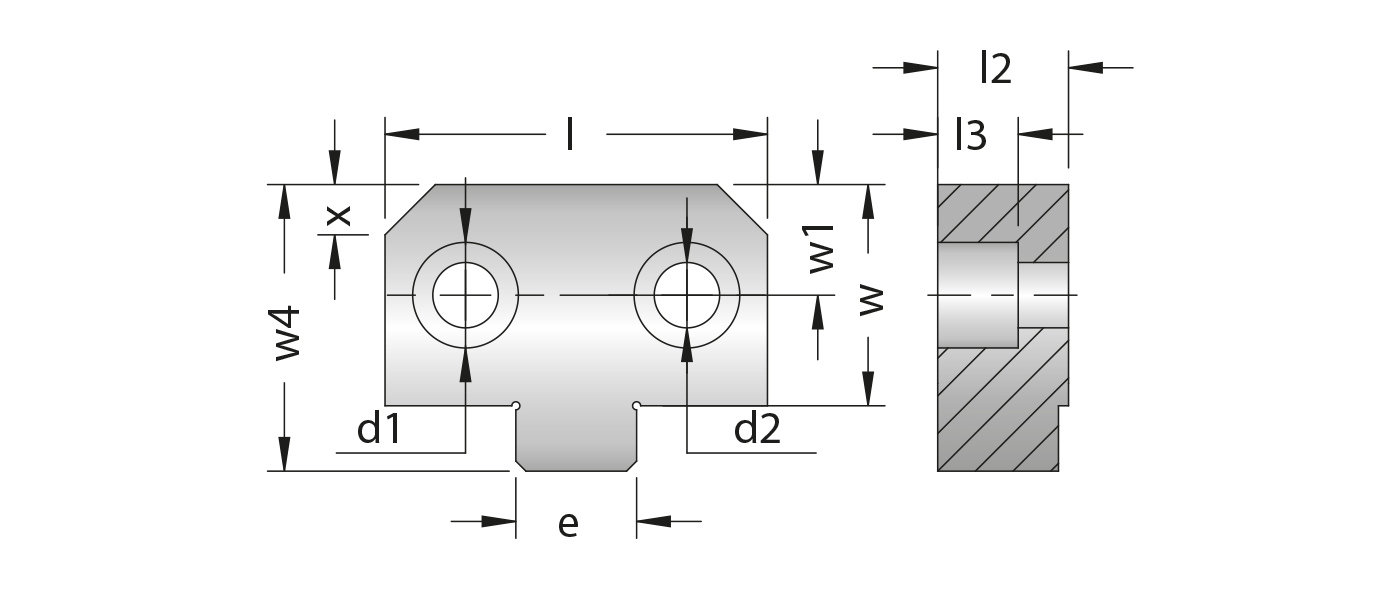

| d1 | d2 | w | w1 | w2 | w3 | w4 | e | x | I1 | I2 | I3 | I | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.5 | 6.5 | 22 | 11 | 7 | 17 | 30 | 12 | 5 | 22 | 13 | 8 | 38 | D50.01.03_038 |
| 10.5 | 6.5 | 21.5 | 11 | 11 | 21 | 30 | 17 | 5 | 34 | 16 | 8 | 50 | D50.01.03_050 |
| 16.5 | 10.5 | 36 | 18 | 18 | 36 | 50 | 25 | 8 | 50 | 19 | 12 | 75 | D50.01.03_075 |
| 16.5 | 10.5 | 45 | 22 | 22 | 45 | 65 | 35 | 10 | 70 | 19 | 12 | 100 | D50.01.03_100 |
| 16.5 | 10.5 | 45 | 22 | 22 | 45 | 65 | 45 | 10 | 84 | 25 | 12 | 125 | D50.01.03_125 |
