D70.011 Döküm Set - Guide Bearing Set

Malzeme - Material GG25 / 1.1213 (Cf53)
Sertlik - Hardness 62± 2 HRC
Isıl İşlem - Heat Treatment Indüksiyon (Induction)

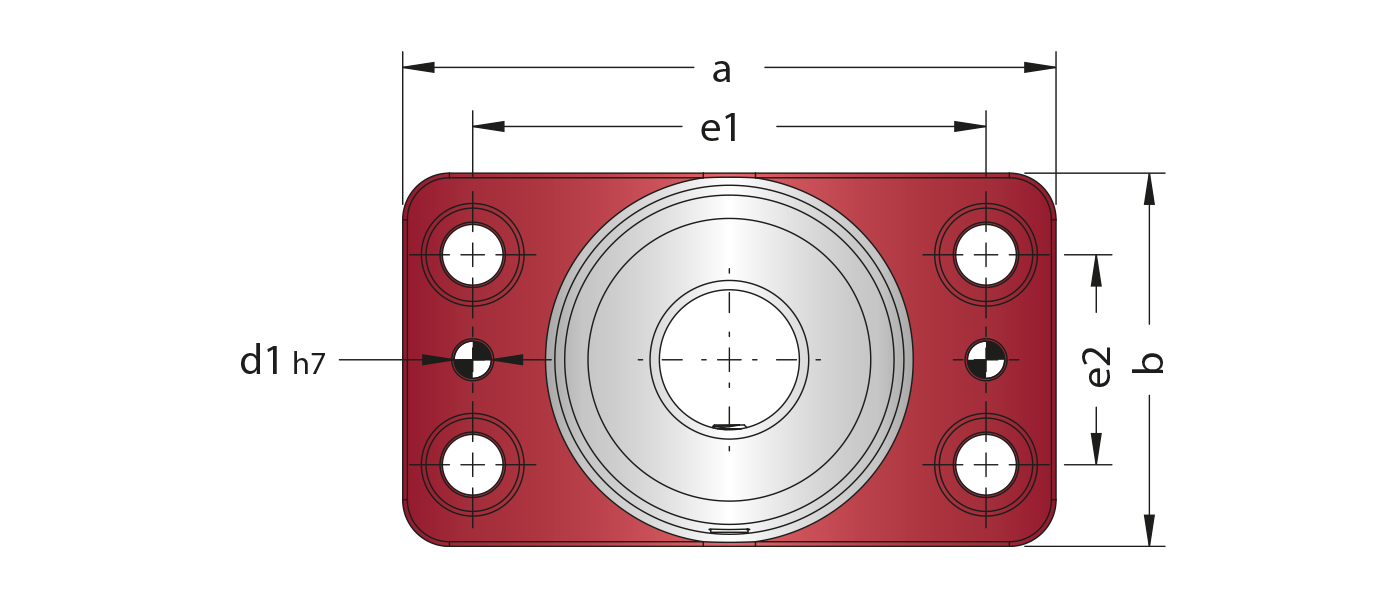

a b d d1 e1 e2 h h1 M I Sipariş Kodu | Order Code
130 80 40 10 95 45 77 30 12 180 D70.011_40180
130 80 40 10 95 45 77 30 12 220 D70.011_40220
130 80 40 10 95 45 77 30 12 260 D70.011_40260
130 80 40 10 95 45 77 30 12 300 D70.011_40300
130 80 40 10 95 45 77 30 12 355 D70.011_40355
130 80 40 10 95 45 77 30 12 400 D70.011_40400
160 96 50 10 118 55 95 35 14 200 D70.011_50200
160 96 50 10 118 55 95 35 14 240 D70.011_50240
160 96 50 10 118 55 95 35 14 280 D70.011_50280
160 96 50 10 118 55 95 35 14 315 D70.011_50315
160 96 50 10 118 55 95 35 14 355 D70.011_50355
160 96 50 10 118 55 95 35 14 400 D70.011_50400
160 96 50 10 118 55 95 35 14 450 D70.011_50450
180 110 63 12 132 62 120 35 16 240 D70.011_63240
180 110 63 12 132 62 120 35 16 280 D70.011_63280
180 110 63 12 132 62 120 35 16 315 D70.011_63315
180 110 63 12 132 62 120 35 16 355 D70.011_63355
180 110 63 12 132 62 120 35 16 400 D70.011_63400
180 110 63 12 132 62 120 35 16 450 D70.011_63450
215 130 80 14 160 75 120 40 20 240 D70.011_80240
215 130 80 14 160 75 120 40 20 280 D70.011_80280
215 130 80 14 160 75 120 40 20 315 D70.011_80315
215 130 80 14 160 75 120 40 20 355 D70.011_80355
215 130 80 14 160 75 120 40 20 400 D70.011_80400
215 130 80 14 160 75 120 40 20 450 D70.011_80450
215 130 80 14 160 75 120 40 20 500 D70.011_80500
h7 d1 b e2 a e1
