D70.041 Bilyalı Döküm Set - Guide Bearing Set with Ball Cage

Malzeme - Material GG25 / 1.3505 (100Cr6) / 1.1213 (Cf 53)
Sertlik - Hardness 62± 2 HRC / 62± 2 HRC
Isıl İşlem - Heat Treatment Sementasyon (Case Hardened) / Indüksiyon (Induction)

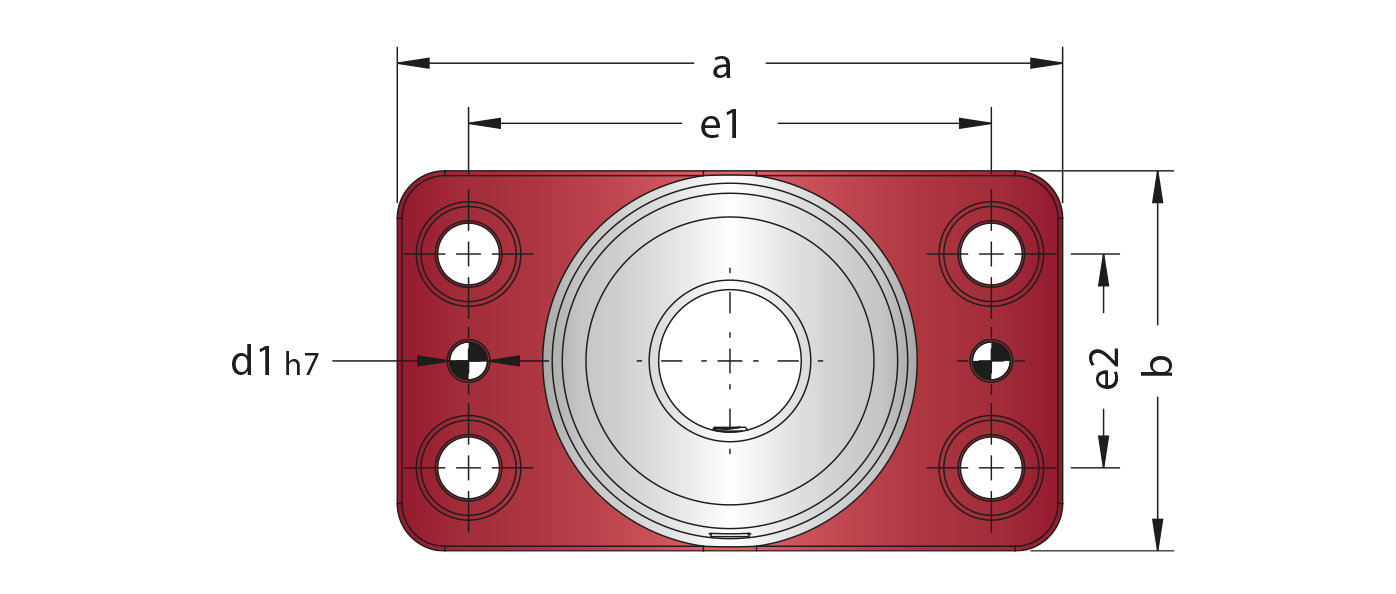

a b d d1 e1 e2 h h1 M I Sipariş Kodu | Order Code
130 80 40 10 95 45 77 30 12 180 D70.041_40180
130 80 40 10 95 45 77 30 12 220 D70.041_40220
130 80 40 10 95 45 77 30 12 260 D70.041_40260
130 80 40 10 95 45 77 30 12 300 D70.041_40300
130 80 40 10 95 45 77 30 12 355 D70.041_40355
130 80 40 10 95 45 77 30 12 400 D70.041_40400
160 96 50 10 118 55 95 35 14 200 D70.041_50200
160 96 50 10 118 55 95 35 14 240 D70.041_50240
160 96 50 10 118 55 95 35 14 280 D70.041_50280
160 96 50 10 118 55 95 35 14 315 D70.041_50315
160 96 50 10 118 55 95 35 14 355 D70.041_50355
160 96 50 10 118 55 95 35 14 400 D70.041_50400
160 96 50 10 118 55 95 35 14 450 D70.041_50450
180 110 63 12 132 62 120 35 16 240 D70.041_63240
180 110 63 12 132 62 120 35 16 280 D70.041_63280
180 110 63 12 132 62 120 35 16 315 D70.041_63315
180 110 63 12 132 62 120 35 16 355 D70.041_63355
180 110 63 12 132 62 120 35 16 400 D70.041_63400
180 110 63 12 132 62 120 35 16 450 D70.041_63450
215 130 80 14 160 75 120 40 20 240 D70.041_80240
215 130 80 14 160 75 120 40 20 280 D70.041_80280
215 130 80 14 160 75 120 40 20 315 D70.041_80315
215 130 80 14 160 75 120 40 20 355 D70.041_80355
215 130 80 14 160 75 120 40 20 400 D70.041_80400
215 130 80 14 160 75 120 40 20 450 D70.041_80450
215 130 80 14 160 75 120 40 20 500 D70.041_80500
