D70.05 Grafitli Düküm Blok - Guide Bearing Non-Lubricant
Malzeme - Material GG25 / SAE 430B
Sertlik - Hardness HB≥180

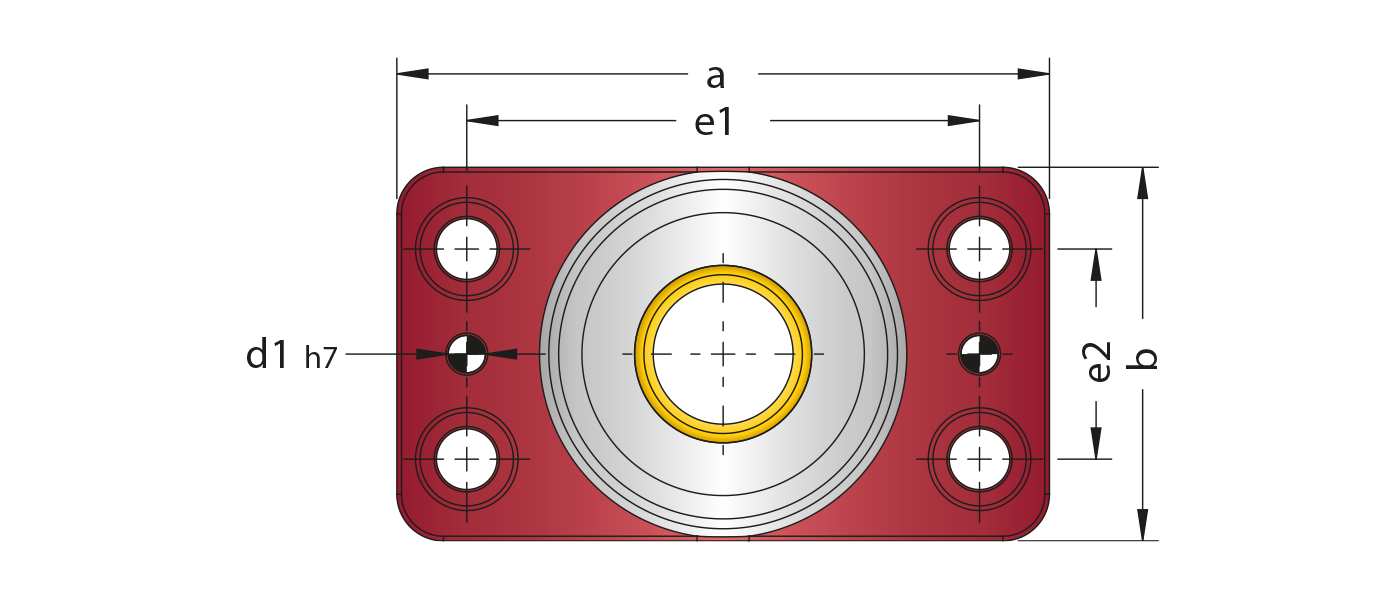

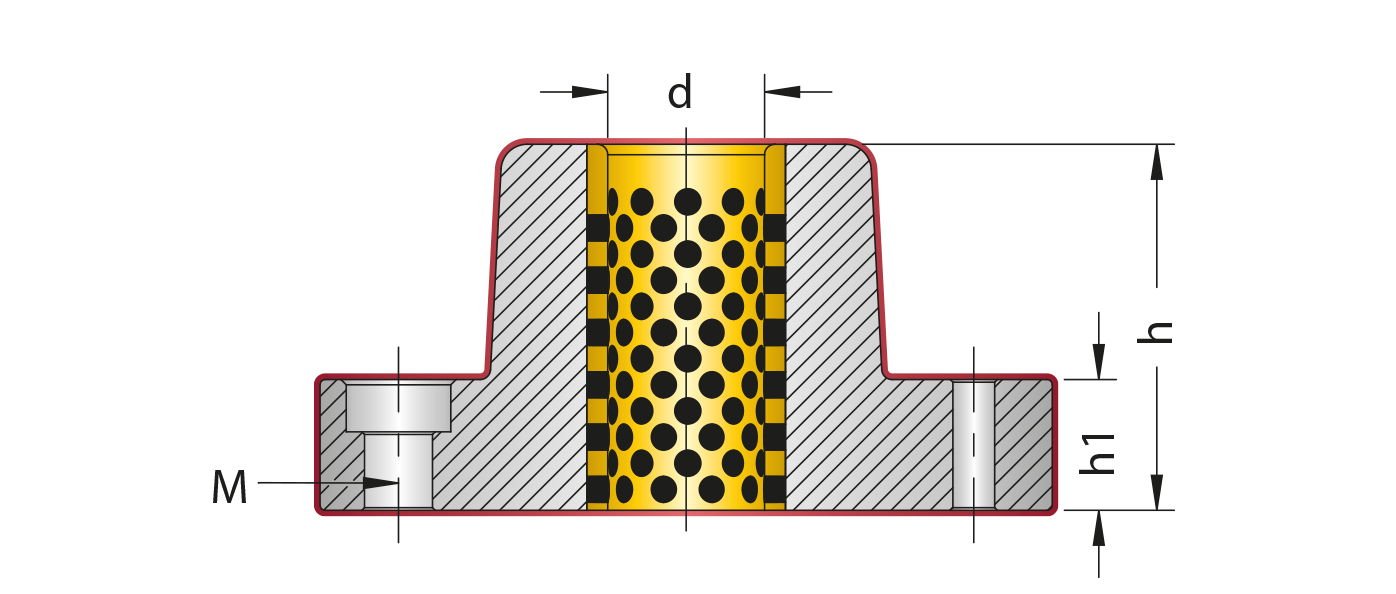

| a | b | d | d1 | e1 | e2 | h | h1 | M | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|---|---|---|
| 130 | 80 | 40 | 10 | 95 | 45 | 77 | 30 | 12 | D70.05_40 |
| 160 | 96 | 50 | 10 | 118 | 55 | 95 | 35 | 14 | D70.05_50 |
| 180 | 110 | 63 | 12 | 132 | 62 | 120 | 35 | 16 | D70.05_63 |
| 215 | 130 | 80 | 14 | 160 | 75 | 120 | 40 | 20 | D70.05_80 |
