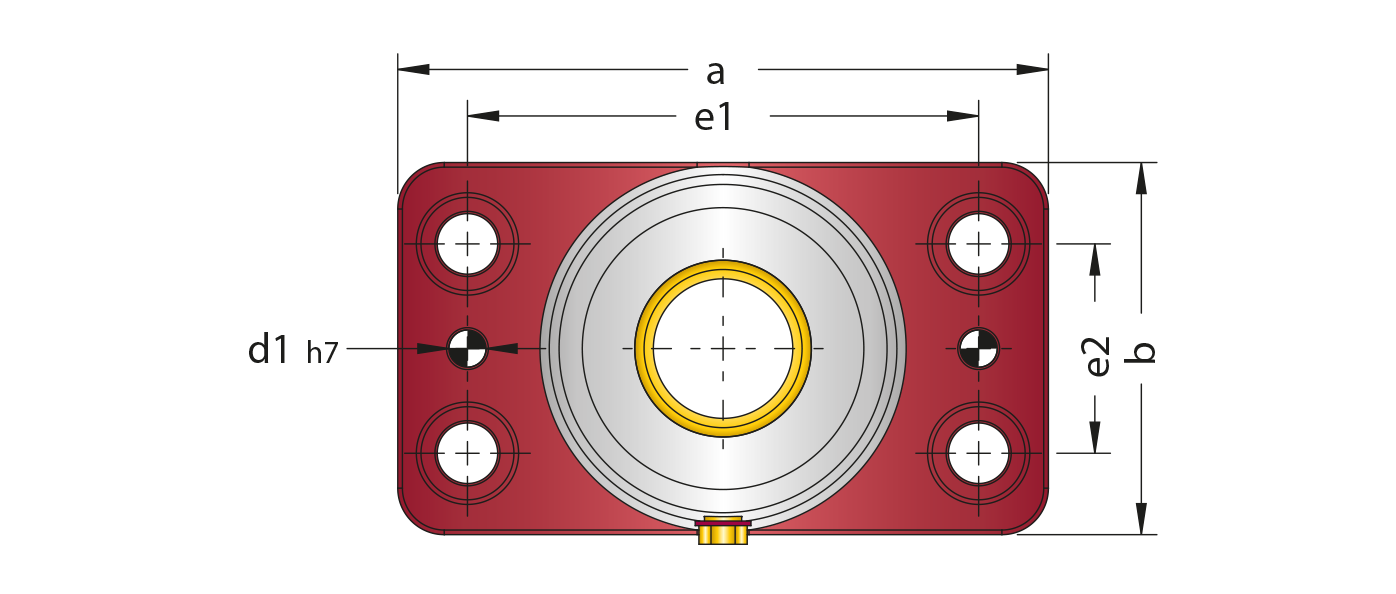

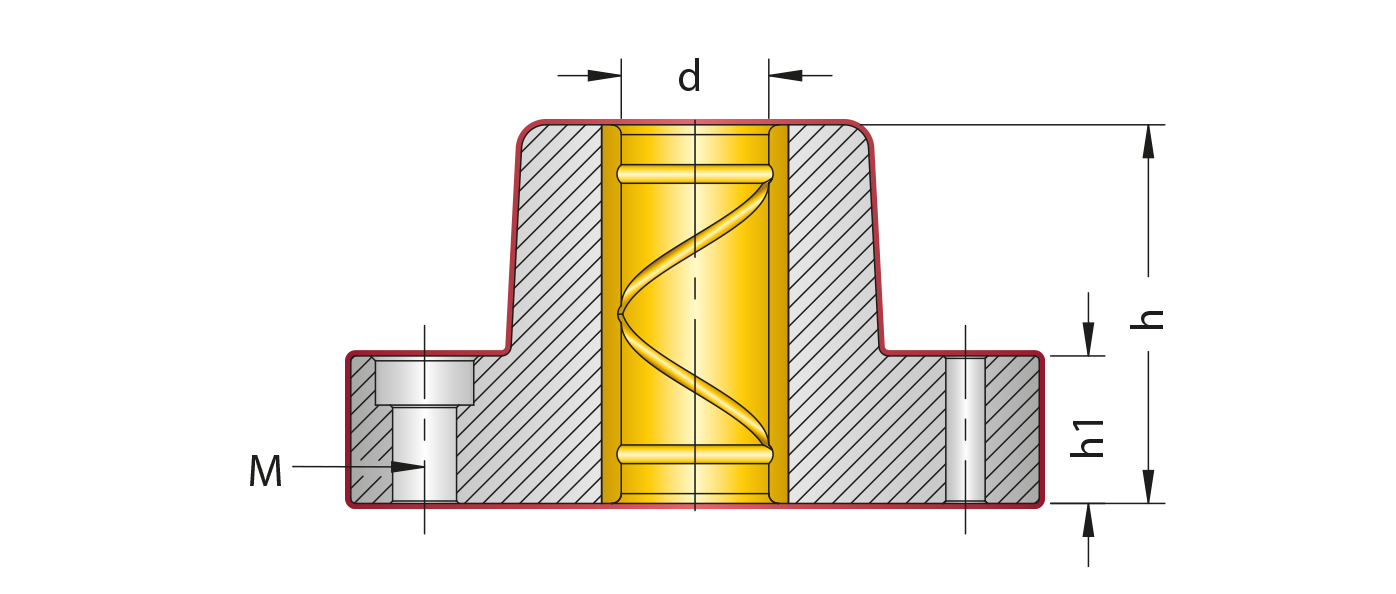

D71.02 Bronzlu Düküm Blok - Guide Bearing with Bronze
Malzeme - Material GG25 / Bronze
Sertlik - Hardness HB≥180
| a | b | d | d1 | e1 | e2 | h | h1 | M | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|---|---|---|
| 130 | 75 | 40 | 10 | 100 | 44 | 70 | 25 | 12 | D71.02_40 |
| 155 | 90 | 50 | 10 | 125 | 60 | 85 | 25 | 12 | D71.02_50 |
