D80.01 Grafitli Sürtünme Plakası - Wear Plate With Graphite Insert
Malzeme - Material SAE 430B / Grafit
Sertlik - Hardness HB≥180

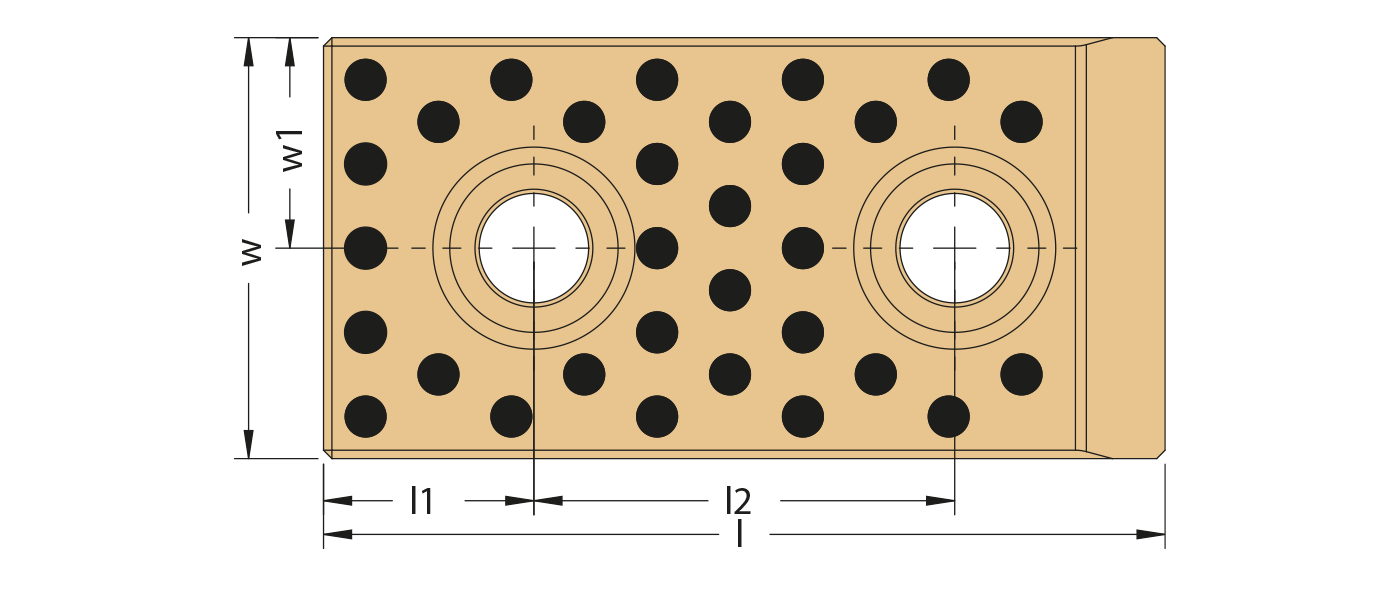

| w | w1 | M | I1 | I2 | I | Sipariş Kodu | Order Code | VW/AUDI - 39D863 | FORD - WDX 1365 | OPEL - 3425 |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 25 | M8 | 25 | 30 | 80 | D80.01_ 50 80 | 12 | ||
| 50 | 25 | M12 | 25 | 50 | 100 | D80.01_ 50100 | 13 | 01050100-Y | F33 04 0000 |
| 50 | 25 | M12 | 25 | 75 | 125 | D80.01_ 50125 | 14 | F33 04 0001 | |
| 50 | 25 | M12 | 25 | 110 | 160 | D80.01_ 50160 | 15 | 01050160-Y | F33 04 0002 |
| 50 | 25 | M12 | 25 | 150 | 200 | D80.01_ 50200 | 16 | 01050200-Y | F33 04 0003 |
| 80 | 40 | M12 | 25 | 30 | 80 | D80.01_ 80 80 | 22 | ||
| 80 | 40 | M12 | 25 | 50 | 100 | D80.01_ 80100 | 23 | 01080100-Y | F33 04 0004 |
| 80 | 40 | M12 | 25 | 75 | 125 | D80.01_ 80125 | 24 | F33 04 0005 | |
| 80 | 40 | M12 | 25 | 110 | 160 | D80.01_ 80160 | 25 | 01080160-Y | F33 04 0006 |
| 80 | 40 | M12 | 25 | 150 | 200 | D80.01_ 80200 | 26 | 01080200-Y | F33 04 0007 |
| 80 | 40 | M12 | 40 | 170 | 250 | D80.01_ 80250 | 01080250-Y | ||
| 80 | 40 | M12 | 40 | 235 | 315 | D80.01_ 80315 | 01080315-Y | ||
| 100 | 50 | M12 | 25 | 50 | 100 | D80.01_100100 | 33 | 01100100-Y | F33 04 0010 |
| 100 | 50 | M12 | 25 | 75 | 125 | D80.01_100125 | 34 | 01100125-Y | F33 04 0011 |
| 100 | 50 | M12 | 25 | 110 | 160 | D80.01_100160 | 35 | 01100160-Y | F33 04 0012 |
| 100 | 50 | M12 | 25 | 150 | 200 | D80.01_100200 | 36 | 01100200-Y | F33 04 0013 |
| 100 | 50 | M12 | 40 | 170 | 250 | D80.01_100250 | 01100250-Y | ||
| 100 | 50 | M12 | 40 | 235 | 315 | D80.01_100315 | 01100315-Y |
