D80.02 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert
Malzeme - Material SAE 430B / Grafit
Sertlik - Hardness HB≥180

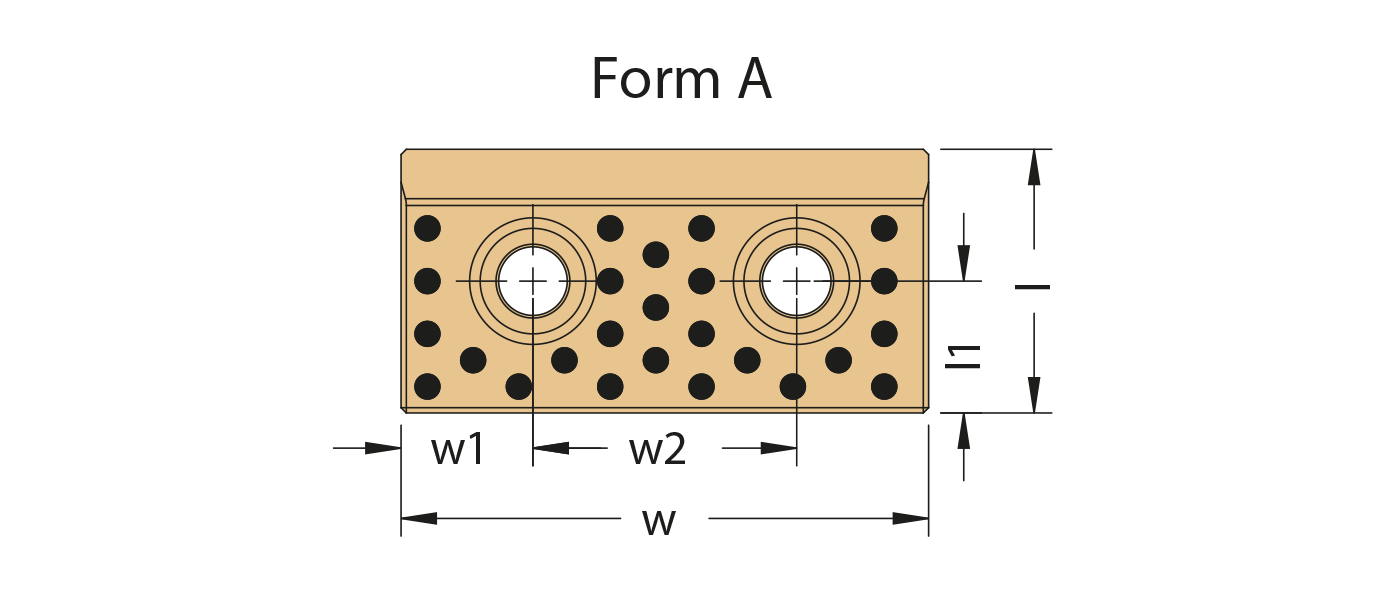

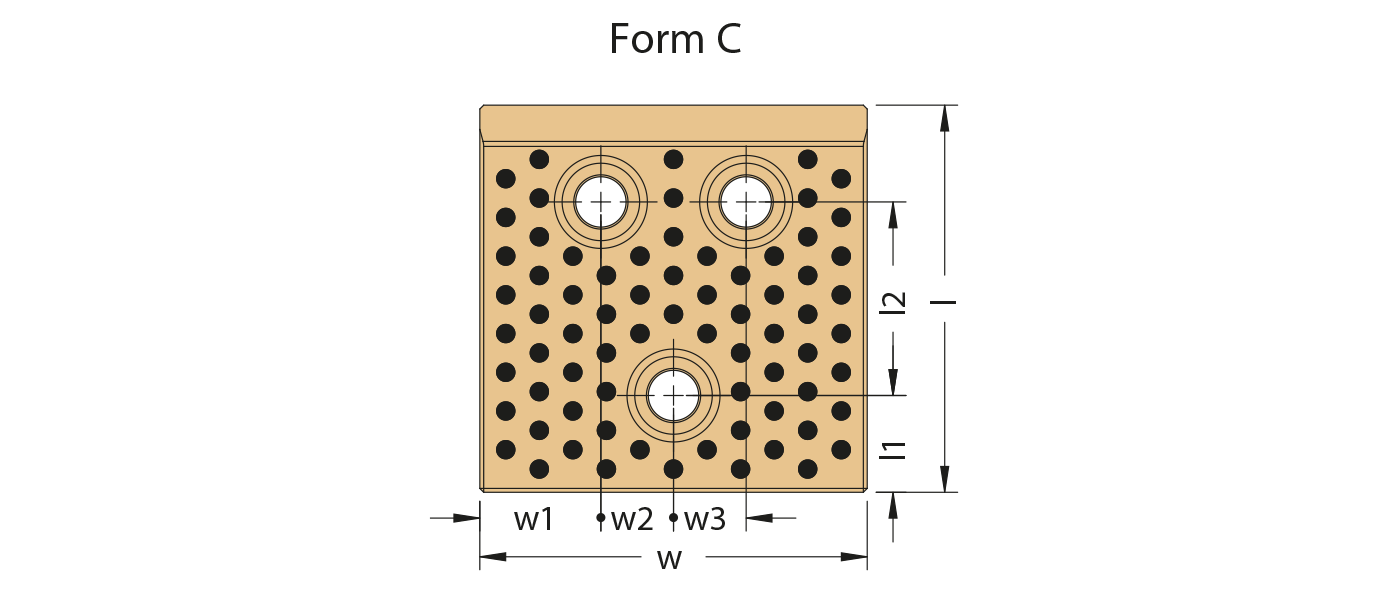

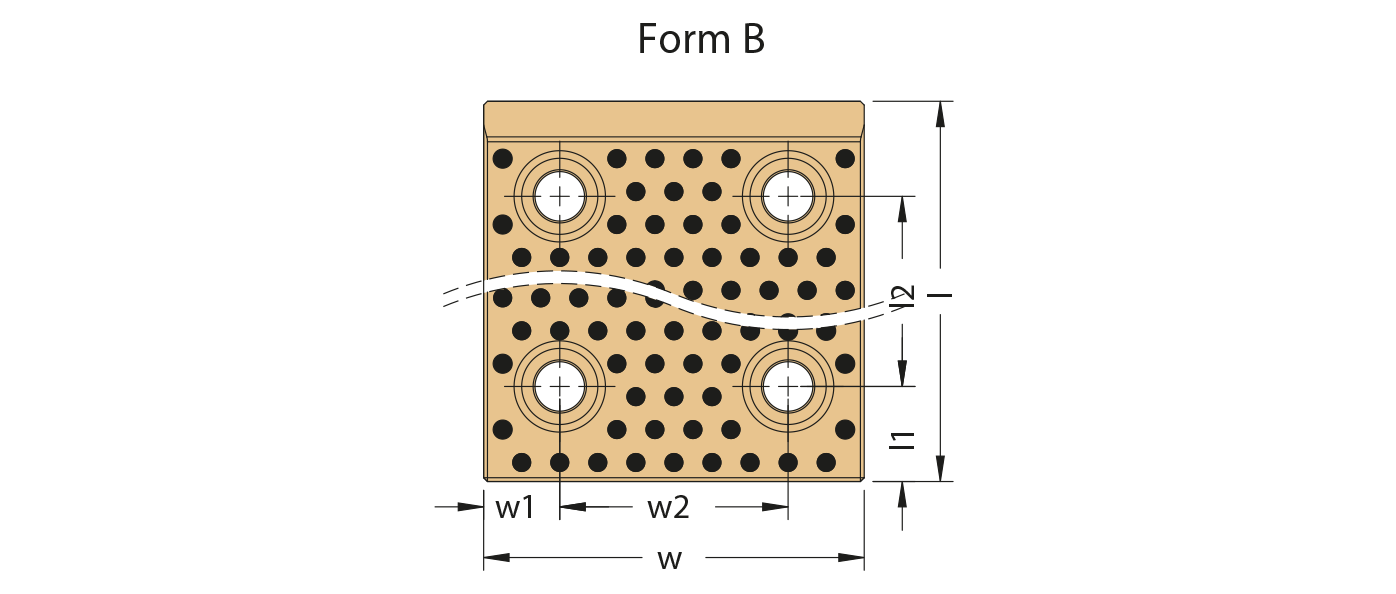

| w | w1 | w2 | w3 | M | Form | I1 | I2 | I | Sipariş Kodu | Order Code | VW/AUDI - 39D863 | FORD - WDX 1365 | OPEL - 3425 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 25 | 30 | M8 | A | 25 | 50 | D80.02_ 80 50 | 21 | ||||
| 100 | 25 | 50 | M12 | A | 25 | 50 | D80.02_100 50 | 31 | 01100050-Y | F33 04 0008 | ||
| 100 | 25 | 50 | M12 | A | 40 | 80 | D80.02_100 80 | 32 | F33 04 0009 | |||
| 125 | 25 | 75 | M12 | A | 25 | 50 | D80.02_125 50 | 41 | ||||
| 125 | 25 | 75 | M12 | A | 40 | 80 | D80.02_125 80 | 42 | F33 04 0014 | |||
| 125 | 25 | 37.5 | 37.5 | M12 | C | 25 | 100 | D80.02_125100 | 43 | 01125100-Y | F33 04 0015 | |
| 125 | 25 | 37.5 | 37.5 | M12 | C | 125 | D80.02_125125 | 44 | F33 04 0016 | |||
| 125 | 25 | 37.5 | 37.5 | M12 | C | 160 | D80.02_125160 | 45 | 01125160-Y | F33 04 0017 | ||
| 125 | 25 | 37.5 | 37.5 | M12 | C | 200 | D80.02_125200 | 46 | 01125200-Y | |||
| 125 | 25 | 37.5 | 37.5 | M12 | C | 40 | 250 | D80.02_125250 | 01125250-Y | |||
| 125 | 25 | 37.5 | 37.5 | M12 | C | 40 | 315 | D80.02_125315 | 01125315-Y | |||
| 160 | 25 | 110 | M12 | A | 24 | 50 | D80.02_160 50 | 51 | ||||
| 160 | 25 | 110 | M12 | A | 40 | 80 | D80.02_160 80 | 52 | ||||
| 160 | 25 | 55 | 55 | M12 | C | 25 | 100 | D80.02_160100 | 53 | 01160100-Y | F33 04 0018 | |
| 160 | 25 | 55 | 55 | M12 | C | 25 | 125 | D80.02_160125 | 54 | F33 04 0019 | ||
| 160 | 25 | 55 | 55 | M12 | C | 25 | 160 | D80.02_160160 | 55 | 01160160-Y | F33 04 0020 | |
| 160 | 25 | 55 | 55 | M12 | C | 25 | 200 | D80.02_160200 | 56 | 01160200-Y | ||
| 160 | 25 | 110 | M12 | B | 40 | 250 | D80.02_160250 | 01160250-Y | ||||
| 160 | 25 | 110 | M12 | B | 40 | 315 | D80.02_160315 | 01160315-Y | ||||
| 160 | 25 | 55 | 55 | M12 | C | 40 | 250 | D80.02_160250.01 | 01160250-Y | |||
| 160 | 25 | 55 | 55 | M12 | C | 40 | 315 | D80.02_160315.01 | 01160315-Y |
