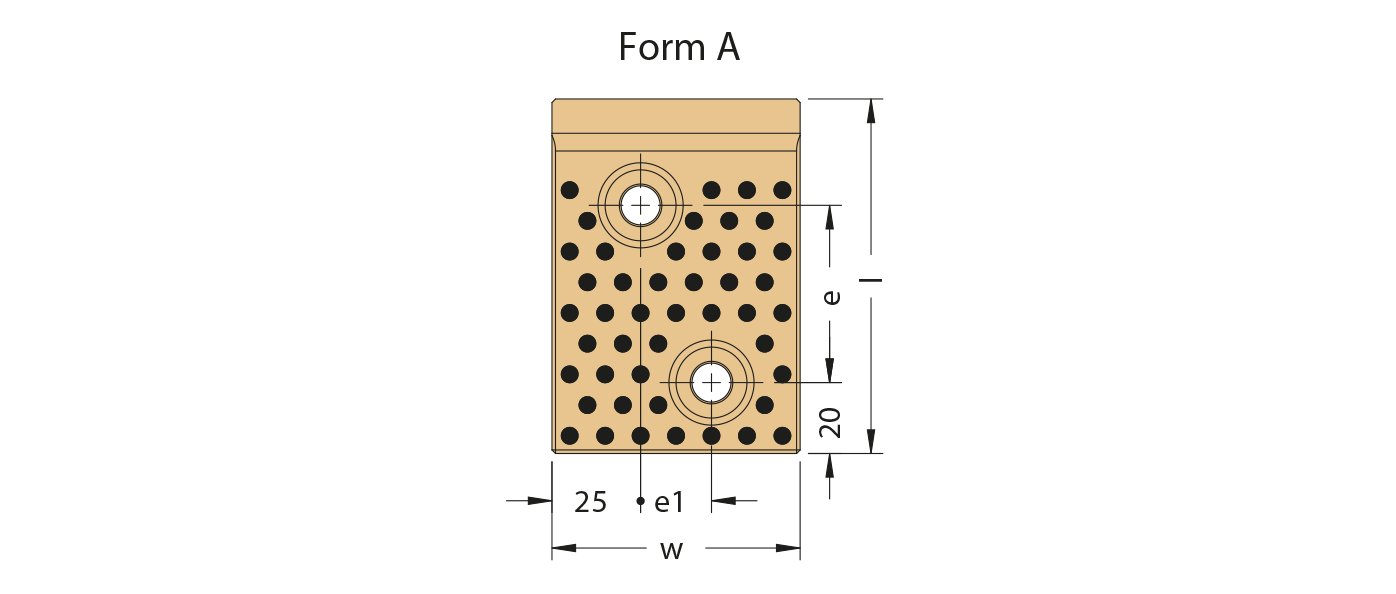

D80.03 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert

Malzeme - Material SAE 430B / Grafit

Sertlik - Hardness HB≥180

e A to Z Z to A Select All 25 50	e1 A to Z Z to A Select All 10 20 25 30 50 100	e2 A to Z Z to A Select All 20 50	e3 A to Z Z to A Select All 50	Form A to Z Z to A Select All A B C D E F G H L	w A to Z Z to A Select All 70 100 150 200	I A to Z Z to A Select All 100 150 200 250 300	Sipariş Kodu \| Order Code A to Z Z to A Select All D80.03_ 70100 D80.03_ 70150 D80.03_ 70200 D80.03_100100 D80.03_100150 D80.03_100200 D80.03_100250 D80.03_100300 D80.03_150100 D80.03_150150 D80.03_150200 D80.03_150250 D80.03_150300 D80.03_200100	PSA - Mabec Code A to Z Z to A Select All Z000 166 214 Z000 166 215 Z000 166 216 Z000 166 217 Z000 166 218 Z000 166 219 Z000 166 221 Z000 166 222 Z000 166 223 Z000 166 224 Z000 166 225 Z000 166 226 Z000 166 227 Z000 166 228	RENAULT - Mabec Code A to Z Z to A Select All R100 092 843 R100 092 844 R100 092 845 R100 092 846 R100 092 883 R100 092 884 R100 092 885 R100 092 886 R100 092 887 R100 092 888 R100 092 890 R100 092 893 R100 092 894 R100 092 895
50	20			A	70	100	D80.03_ 70100	Z000 166 214	R100 092 843
50	10	20		B	70	150	D80.03_ 70150	Z000 166 216	R100 092 844
50	20			D	70	200	D80.03_ 70200	Z000 166 221	R100 092 845
25	50		50	C	100	150	D80.03_100150	Z000 166 217	R100 092 883
50	50			D	100	200	D80.03_100200	Z000 166 222	R100 092 884
50	50			E	100	250	D80.03_100250	Z000 166 225	R100 092 885
50	100			D	150	200	D80.03_150200	Z000 166 223	R100 092 890
50	100			E	150	250	D80.03_150250	Z000 166 226	R100 092 893
	30	20		L	100	100	D80.03_100100	Z000 166 215	R100 092 846
50	50			F	100	300	D80.03_100300	Z000 166 227	R100 092 886
	25	50	50	G	150	100	D80.03_150100	Z000 166 218	R100 092 887
	25	50		H	150	150	D80.03_150150	Z000 166 219	R100 092 888
50	100			F	150	300	D80.03_150300	Z000 166 228	R100 092 894
	50	50	50	G	200	100	D80.03_200100	Z000 166 224	R100 092 895
