D80.03 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert

Malzeme - Material SAE 430B / Grafit

Sertlik - Hardness HB≥180

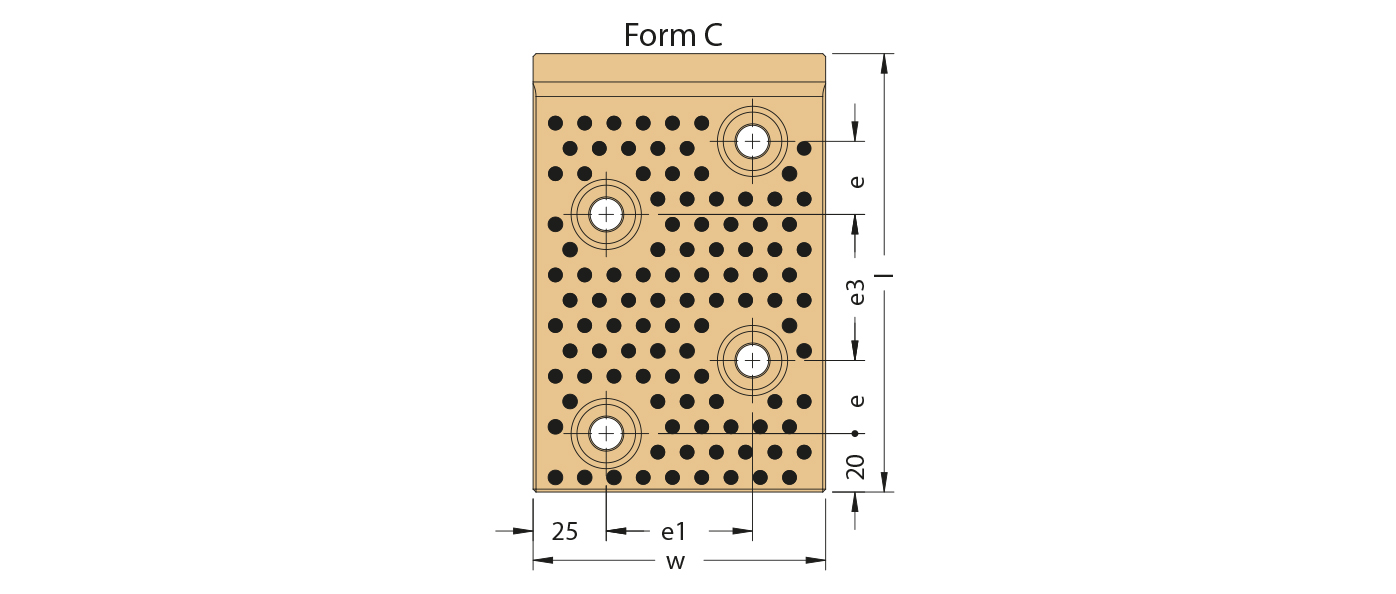

e	e1	e2	e3	Form	w	I	Sipariş Kodu \| Order Code	PSA - Mabec Code	RENAULT - Mabec Code
50	20			A	70	100	D80.03_ 70100	Z000 166 214	R100 092 843
50	10	20		B	70	150	D80.03_ 70150	Z000 166 216	R100 092 844
50	20			D	70	200	D80.03_ 70200	Z000 166 221	R100 092 845
25	50		50	C	100	150	D80.03_100150	Z000 166 217	R100 092 883
50	50			D	100	200	D80.03_100200	Z000 166 222	R100 092 884
50	50			E	100	250	D80.03_100250	Z000 166 225	R100 092 885
50	100			D	150	200	D80.03_150200	Z000 166 223	R100 092 890
50	100			E	150	250	D80.03_150250	Z000 166 226	R100 092 893
	30	20		L	100	100	D80.03_100100	Z000 166 215	R100 092 846
50	50			F	100	300	D80.03_100300	Z000 166 227	R100 092 886
	25	50	50	G	150	100	D80.03_150100	Z000 166 218	R100 092 887
	25	50		H	150	150	D80.03_150150	Z000 166 219	R100 092 888
50	100			F	150	300	D80.03_150300	Z000 166 228	R100 092 894
	50	50	50	G	200	100	D80.03_200100	Z000 166 224	R100 092 895
