D80.17 Açılı Sürtünme Plakası / Overrun Cam
Malzeme - Material Çelik / Steel
Sertlik - Hardness 62 ± 2 HRC

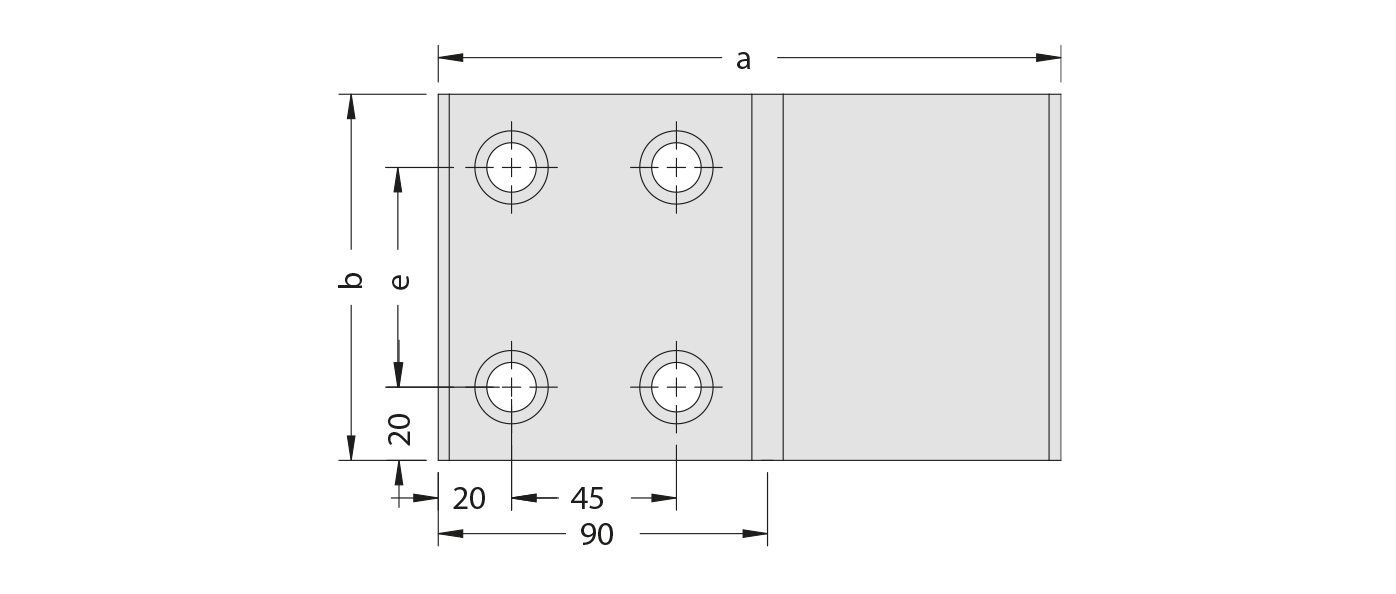

| a | b | e | t | s | I | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|
| 170 | 100 | 60 | 30 | 45 | 143.37 | D80.17_10017045 |
| 170 | 125 | 85 | 30 | 45 | 143.37 | D80.17_12517045 |
| 170 | 150 | 110 | 30 | 45 | 143.37 | D80.17_15017045 |
| 170 | 200 | 160 | 30 | 45 | 143.37 | D80.17_20017045 |
| 150 | 100 | 60 | 30 | 45 | 127.86 | D80.17_10015045 |
| 170 | 100 | 60 | 45 | 60 | 127.86 | D80.17_10017060 |
| 150 | 125 | 85 | 30 | 45 | 127.86 | D80.17_12515045 |
| 170 | 125 | 85 | 45 | 60 | 127.86 | D80.17_12517060 |
| 150 | 150 | 110 | 30 | 45 | 127.86 | D80.17_15015045 |
| 170 | 150 | 110 | 45 | 60 | 127.86 | D80.17_15017060 |
| 150 | 200 | 160 | 30 | 45 | 127.86 | D80.17_20015045 |
| 170 | 200 | 160 | 45 | 60 | 127.86 | D80.17_20017060 |
