D81.01 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert
Malzeme - Material SAE 430B / Grafit
Sertlik - Hardness HB≥180

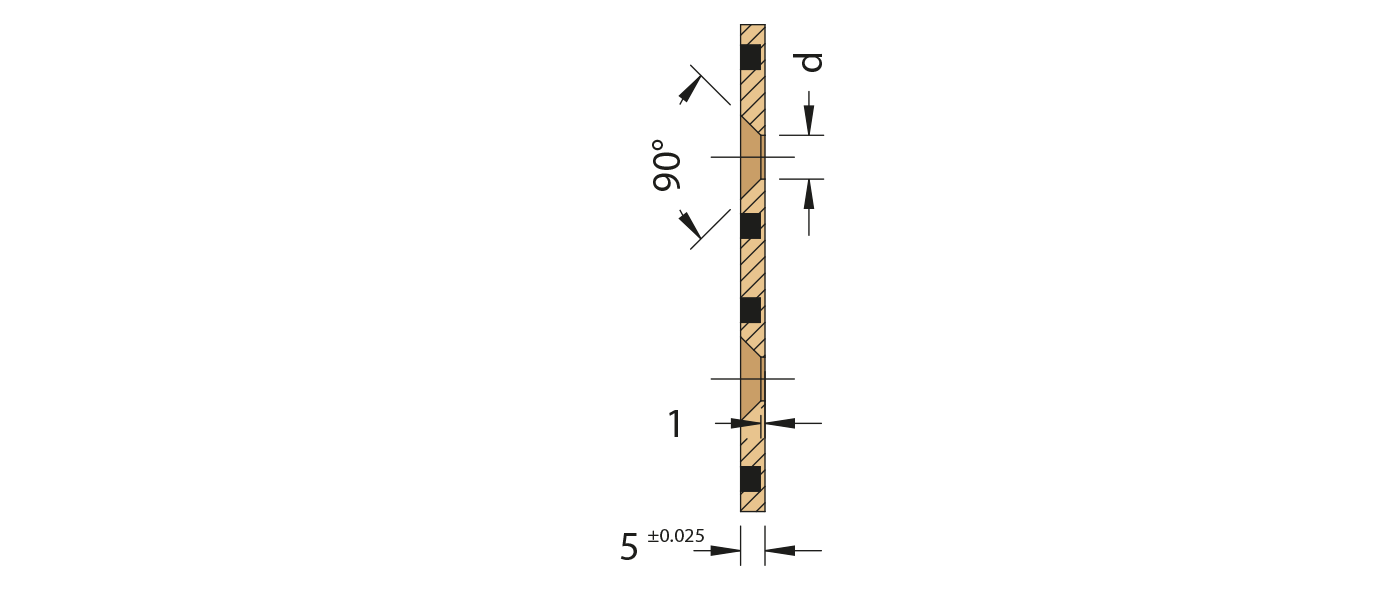

| a | b | d | Form | I1 | I | Cıvata / Bolt | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|---|
| 18 | =-K22 | 6.5 | A | 20 | 50 | 2*M6x10 | D81.01_018050 |
| 18 | =-K22 | 6.5 | A | 45 | 75 | 2*M6x10 | D81.01_018075 |
| 18 | =-K22 | 6.5 | A | 70 | 100 | 2*M6x10 | D81.01_018100 |
| 18 | =-K22 | 6.5 | B | 60 | 150 | 3*M6x16 | D81.01_018150 |
| 28 | =-K22 | 9 | A | 20 | 50 | 2*M8x10 | D81.01_028050 |
| 28 | =-K22 | 9 | A | 45 | 75 | 2*M8x10 | D81.01_028075 |
| 28 | =-K22 | 9 | A | 70 | 100 | 2*M8x10 | D81.01_028100 |
| 28 | =-K22 | 9 | B | 60 | 150 | 3*M8x16 | D81.01_028150 |
| 38 | =-K22 | 9 | A | 20 | 50 | 2*M8x16 | D81.01_038050 |
| 38 | =-K22 | 9 | A | 45 | 75 | 2*M8x16 | D81.01_038075 |
| 38 | =-K22 | 9 | A | 70 | 100 | 2*M8x16 | D81.01_038100 |
| 38 | =-K22 | 9 | B | 60 | 150 | 3*M8x16 | D81.01_038150 |
| 48 | =-K22 | 9 | A | 45 | 75 | 2*M8x16 | D81.01_048075 |
| 48 | =-K22 | 9 | A | 70 | 100 | 2*M8x16 | D81.01_048100 |
| 48 | =-K22 | 9 | A | 95 | 125 | 2*M8x16 | D81.01_048125 |
| 48 | =-K22 | 9 | B | 60 | 150 | 3*M8x16 | D81.01_048150 |
| 75 | 45 | 9 | C | 45 | 75 | 4*M8x16 | D81.01_075075 |
| 75 | 45 | 9 | C | 70 | 100 | 4*M8x16 | D81.01_075100 |
| 75 | 45 | 9 | C | 95 | 125 | 4*M8x16 | D81.01_075125 |
| 75 | 45 | 9 | D | 60 | 150 | 6*M8x16 | D81.01_075150 |
| 100 | 70 | 9 | C | 70 | 100 | 4*M8x16 | D81.01_100100 |
| 100 | 70 | 9 | C | 95 | 125 | 4*M8x16 | D81.01_100125 |
| 100 | 70 | 9 | D | 60 | 150 | 6*M8x16 | D81.01_100150 |
