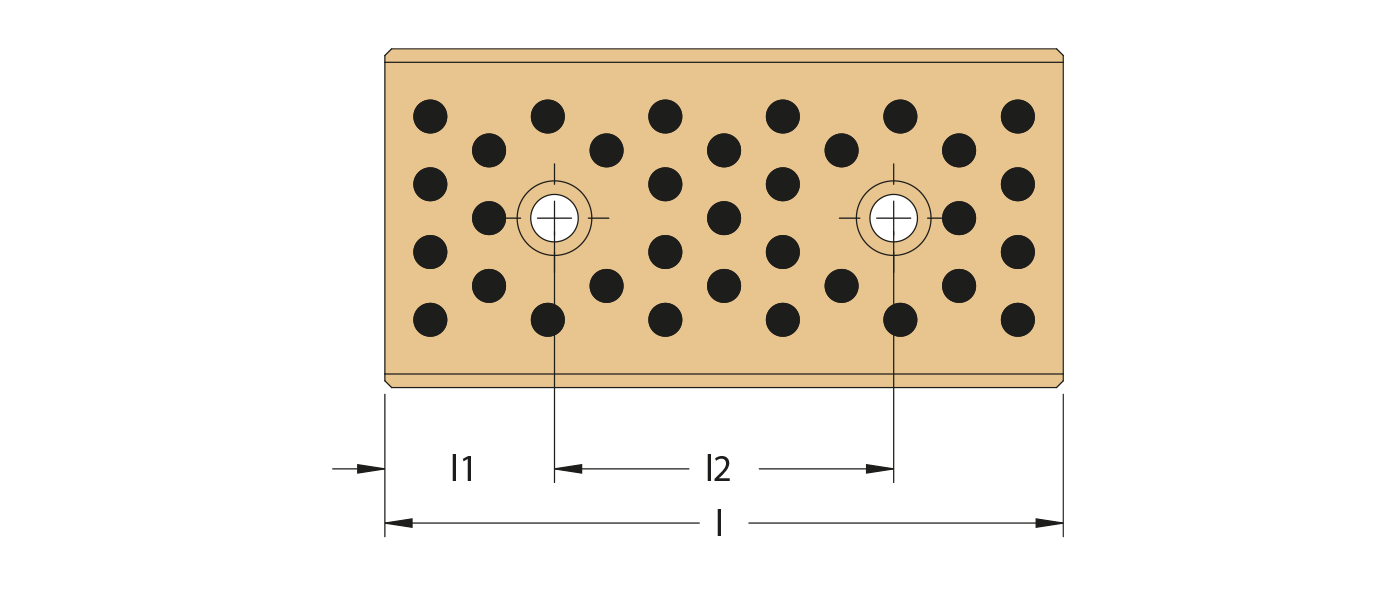

D82.01 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert
Malzeme - Material SAE 430B / Grafit
Sertlik - Hardness HB≥180
| a | I1 | I2 | I | Cıvata / Bolt | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|
| 18 | 15 | 45 | 75 | 2xM6 | D82.01_18 75 |
| 18 | 25 | 50 | 100 | 2xM6 | D82.01_18100 |
| 18 | 25 | 75 | 125 | 2xM6 | D82.01_18125 |
| 18 | 25 | 100 | 150 | 2xM6 | D82.01_18150 |
| 28 | 15 | 45 | 75 | 2xM6 | D82.01_28 75 |
| 28 | 25 | 50 | 100 | 2xM6 | D82.01_28100 |
| 28 | 25 | 75 | 125 | 2xM6 | D82.01_28125 |
| 28 | 25 | 100 | 150 | 2xM6 | D82.01_28150 |
| 38 | 15 | 45 | 75 | 2xM6 | D82.01_38 75 |
| 38 | 25 | 50 | 100 | 2xM6 | D82.01_38100 |
| 38 | 25 | 75 | 125 | 2xM6 | D82.01_38125 |
| 38 | 25 | 100 | 150 | 2xM6 | D82.01_38150 |
| 48 | 15 | 45 | 75 | 2xM6 | D82.01_48 75 |
| 48 | 25 | 50 | 100 | 2xM6 | D82.01_48100 |
| 48 | 25 | 75 | 125 | 2xM6 | D82.01_48125 |
| 48 | 25 | 100 | 150 | 2xM6 | D82.01_48150 |
