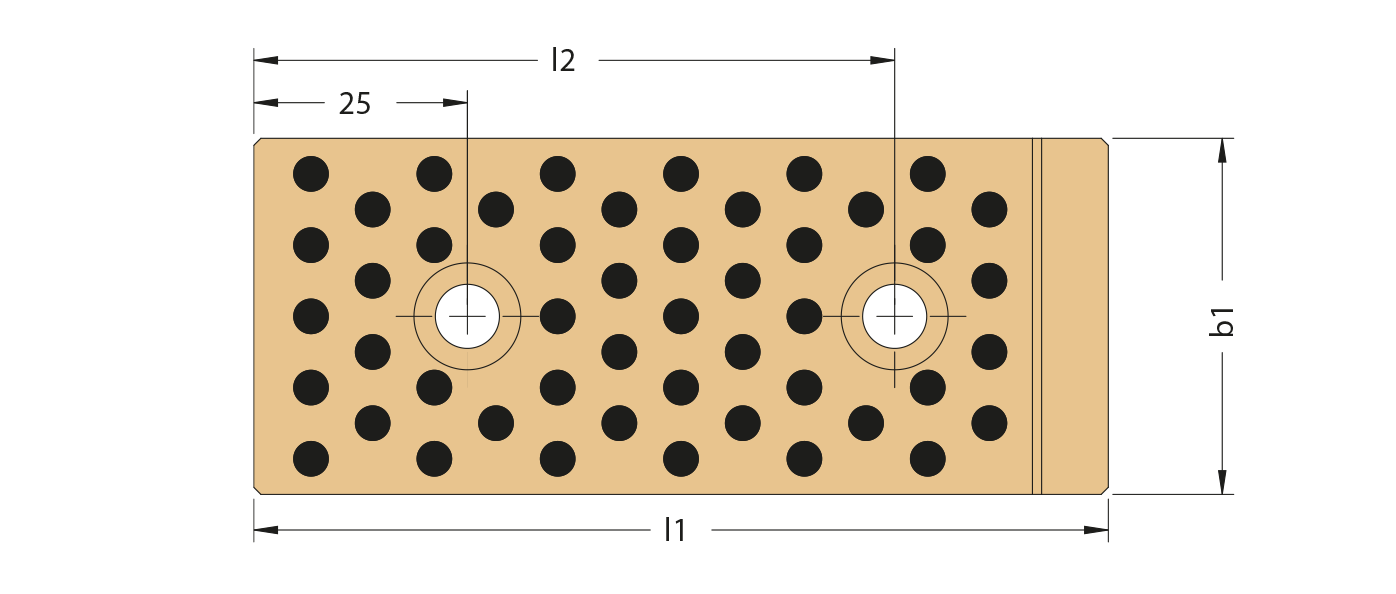

D83.01 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert

Malzeme - Material SAE 430B / Grafit

Sertlik - Hardness HB≥180

b1	I1	I2	Cıvata / Bolt	Sipariş Kodu \| Order Code
30	80	55	2xM8	D83.01_30 80
30	100	75	2xM8	D83.01_30100
30	125	100	2xM8	D83.01_30125
30	160	135	2xM8	D83.01_30160
30	200	175	2xM8	D83.01_30200
40	80	55	2xM8	D83.01_40 80
40	100	75	2xM8	D83.01_40100
40	125	100	2xM8	D83.01_40125
40	160	135	2xM8	D83.01_40160
40	200	175	2xM8	D83.01_40200
50	80	55	2xM8	D83.01_50 80
50	100	75	2xM8	D83.01_50100
50	125	100	2xM8	D83.01_50125
50	160	135	2xM8	D83.01_50160
50	200	175	2xM8	D83.01_50200
60	80	55	2xM8	D83.01_60 80
60	100	75	2xM8	D83.01_60100
60	125	100	2xM8	D83.01_60125
60	160	135	2xM8	D83.01_60160
60	200	175	2xM8	D83.01_60200
80	80	55	2xM8	D83.01_80 80
80	100	75	2xM8	D83.01_80100
80	125	100	2xM8	D83.01_80125
80	160	135	2xM8	D83.01_80160
80	200	175	2xM8	D83.01_80200
