D84.01 Grafitli Sürtünme Plakası / Wear Plate With Graphite Insert
Malzeme - Material SAE 430B / Grafit
Sertlik - Hardness HB≥180

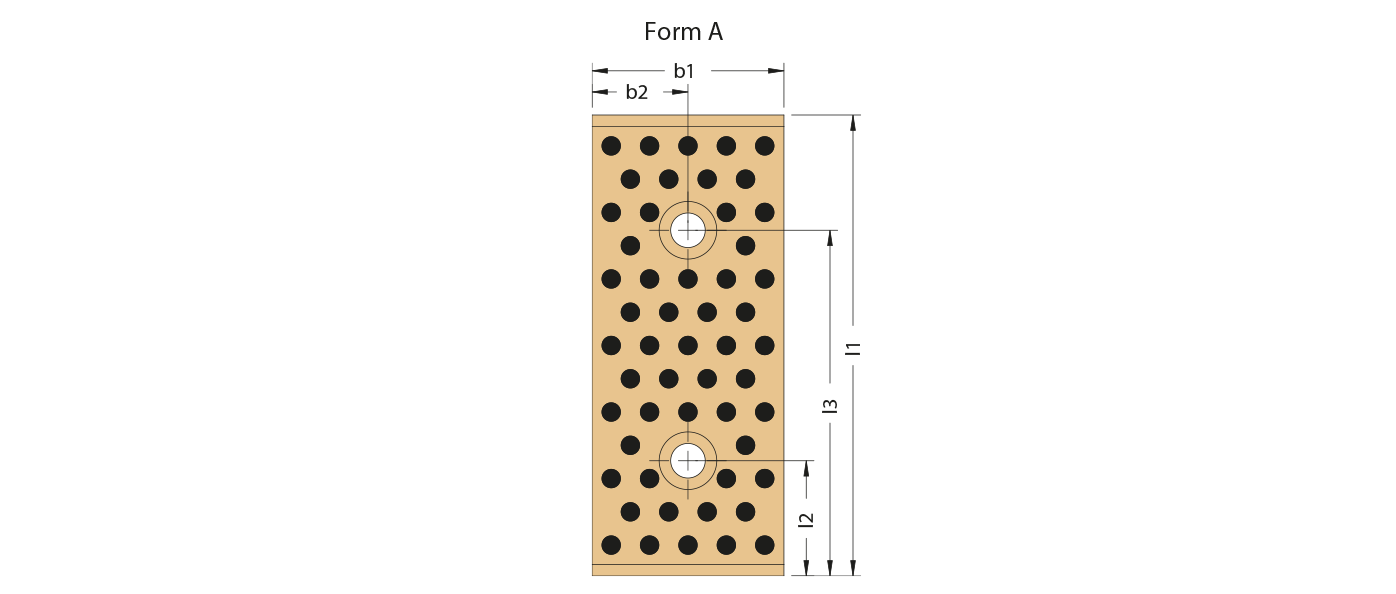

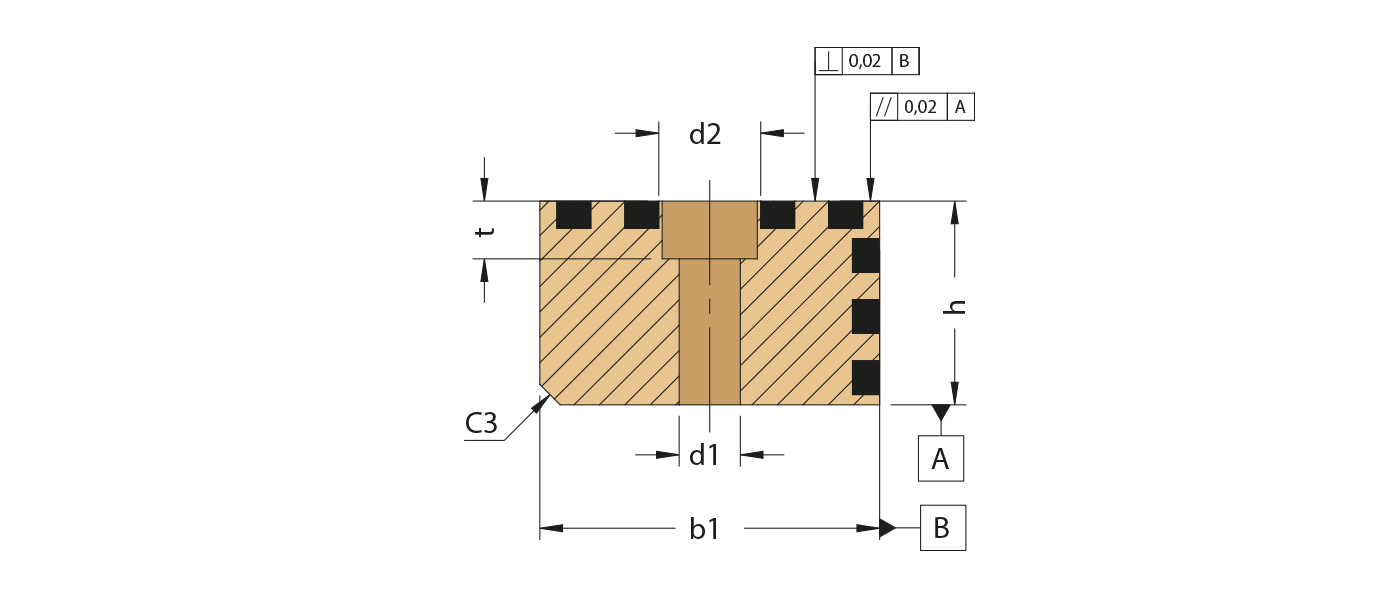

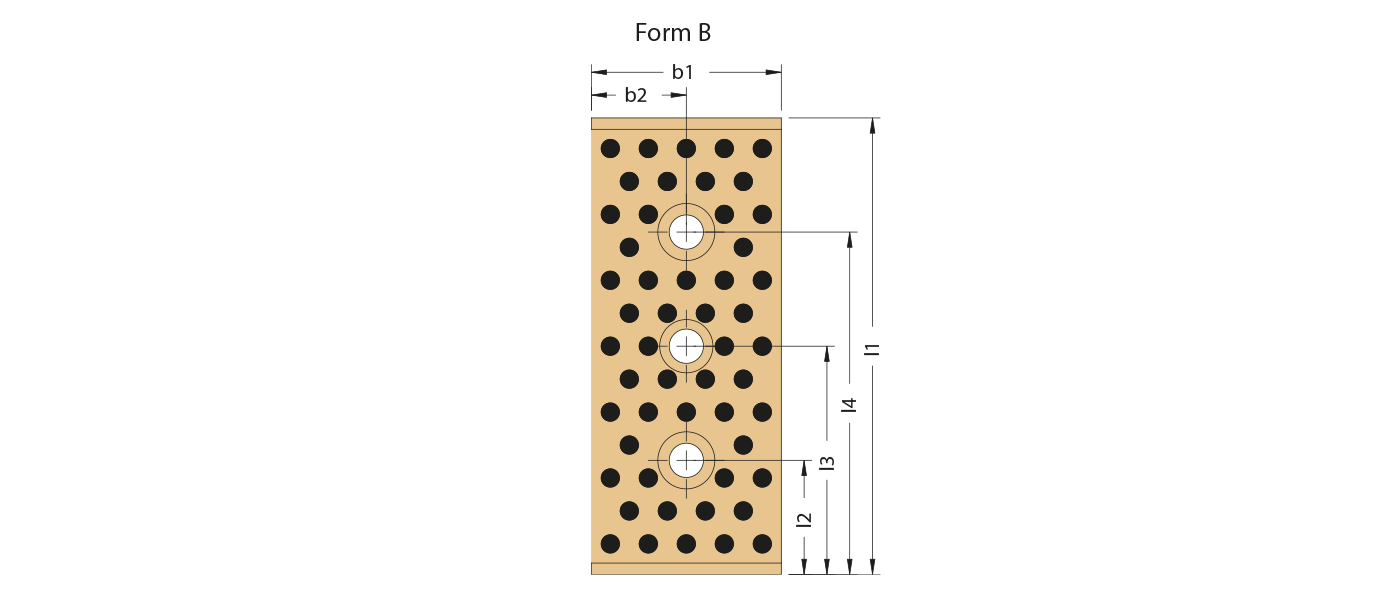

| b1 | b2 | d1 | d2 | t | h | Form | I1 | I2 | I3 | I4 | Sipariş Kodu | Order Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 12,5 | 9 | 15 | 8,5 | 12 | A | 110 | 25 | 85 | - | D84.01_1225110 |
| 25 | 12,5 | 9 | 15 | 8,5 | 12 | A | 120 | 25 | 95 | - | D84.01_1225120 |
| 25 | 12,5 | 11 | 18 | 10,5 | 15 | A | 110 | 25 | 85 | - | D84.01_1525110 |
| 25 | 12,5 | 11 | 18 | 10,5 | 15 | A | 120 | 25 | 95 | - | D84.01_1525120 |
| 60 | 30 | 13,5 | 20 | 13 | 30 | A | 125 | 25 | 100 | - | D84.01_3060125 |
| 60 | 30 | 13,5 | 20 | 13 | 30 | A | 160 | 25 | 135 | - | D84.01_3060160 |
| 60 | 30 | 13,5 | 20 | 13 | 30 | B | 200 | 25 | 100 | 175 | D84.01_3060200 |
| 60 | 30 | 13,5 | 20 | 13 | 40 | A | 125 | 25 | 100 | - | D84.01_4060125 |
| 60 | 30 | 13,5 | 20 | 13 | 40 | A | 160 | 25 | 135 | - | D84.01_4060160 |
| 60 | 30 | 13,5 | 20 | 13 | 40 | B | 200 | 25 | 100 | 100 | D84.01_4060200 |
