YAYLI BASKI PİMLERİ
Malzeme - Material : Kovan (Barrel) 1.7220(34CrMo4)
Sertlik - Hardness : 36-40 HRC, Kaplama (Coating)
| b | d | k | M | sw | I | FORM | Kuvvet - Force | Ilk Kuvvet - Initial Force N (Kgf) | Son Kuvvet - Final Force N (Kgf) | Sipariş Kodu / Order Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1.5 | M3 | 0.8 | 10 | A | High | 0,5 (0,05) | 3 (0,3) | EM00003H | |
| 1.6 | 2 | M4 | 0.8 | 12 | A | High | 2 (0,2) | 10 (1,0) | EM00004H | |
| 2 | 3 | M5 | 1.5 | 20 | A | High | 4 (0,4) | 20 (2,0) | EM00004H | |
| 2.5 | 3 | M6 | 2 | 25 | A | High | 7,8 (0,8) | 29,4 (3,0) | EM00006H / D18.05.06_0600 | |
| 3.2 | 3 | M8 | 2.5 | 25 | A | High | 7,8 (0,8) | 29,4 (3,0) | EM00008H / D18.05.06_0800 | |
| 3.2 | 3 | M8 | 2.5 | 25 | A | Low | 2,9 (0,3) | 9,8 (1,0) | EM00008L / D18.05.06_0801 | |
| 3.9 | 5 | M10 | 3 | 30 | A | High | 9,8 (1,0) | 49,0 (5,0) | EM00010H / D18.05.06_1000 | |
| 3.9 | 5 | M10 | 3 | 30 | A | Low | 2,9 (0,3) | 14,7 (1,5) | EM00010L / D18.05.06_1001 | |
| 5.5 | 5 | M12 | 4 | 30 | A | High | 9,8 (1,0) | 49,0 (5,0) | EM00012H / D18.05.06_1200 | |
| 5.5 | 5 | M12 | 4 | 30 | A | Low | 1,9 (0,2) | 9,8 (1,0) | EM00012L / D18.05.06_1201 | |

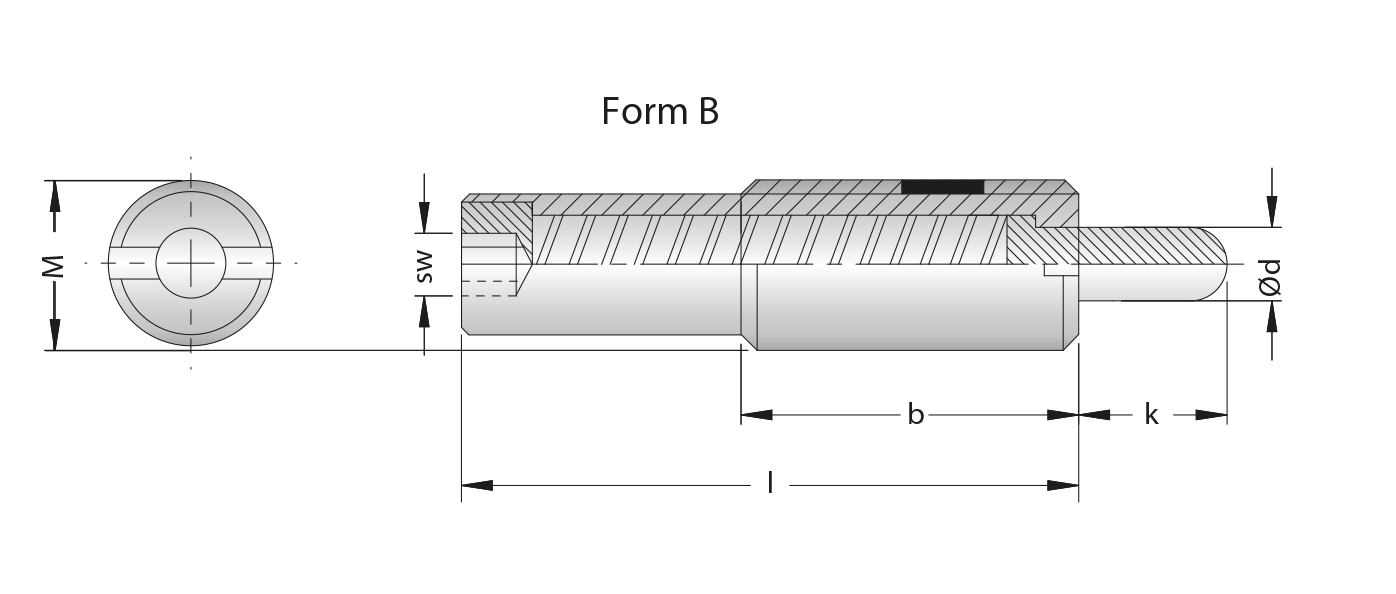

| 35 | 5.5 | 10 | M12 | 4 | 43 | B | High | 6,8 (0,4) | 39,2 (4,0) | EM01210H / D18.05.06_1203 |
| 35 | 5.5 | 10 | M12 | 4 | 43 | B | Low | 3,9 (0,4) | 19,6 (2,0) | EM01210L / D18.05.06_1204 |
| 35 | 8 | 10 | M16 | 5 | 60 | B | High | 26,4 (2,7) | 78,4 (8,0) | EM01610H / D18.05.06_1600 |
| 35 | 8 | 10 | M16 | 5 | 60 | B | Low | 12,7 (1,3) | 39,2 (4,0) | EM01610L / D18.05.06_1601 |
| 35 | 8 | 15 | M16 | 5 | 60 | B | High | 14,7 (1,5) | 78,4 (8,0) | EM01615H / D18.05.06_1602 |
| 35 | 8 | 15 | M16 | 5 | 60 | B | Low | 9,8 (1,0) | 39,2 (4,0) | EM01615L / D18.05.06_1603 |
| 35 | 8 | 20 | M16 | 5 | 85 | B | High | 16,6 (1,7) | 78,4 (8,0) | EM01620H / D18.05.06_1604 |
| 35 | 8 | 20 | M16 | 5 | 85 | B | Low | 14,7 (1,5) | 78,4 (8,0) | EM01620L / D18.05.06_1605 |
| 35 | 8 | 30 | M16 | 5 | 125 | B | High | 19,6 (2,0) | 78,4 (8,0) | D18.05.06_1606 / EM01630H |
| 35 | 8 | 30 | M16 | 5 | 125 | B | Low | 17,6 (1,8) | 39,2 (4,0) | D18.05.06_1607 / EM01630L |
| 45 | 10 | 15 | M24 | 8 | 60 | B | High | 40 (4,0) | 200 (20,0) | EM02415H |
| 45 | 10 | 15 | M24 | 8 | 60 | B | Low | 20 (2,0) | 100 (10,0) | EM02415L |
| 45 | 15 | 20 | M30 | 12 | 70 | B | High | 50 (5,0) | 300 (30,0) | EM 03020H |
| 45 | 15 | 20 | M30 | 2 | 70 | B | Low | 30 (3,0) | 150 (15,0) | EM 03020L |
